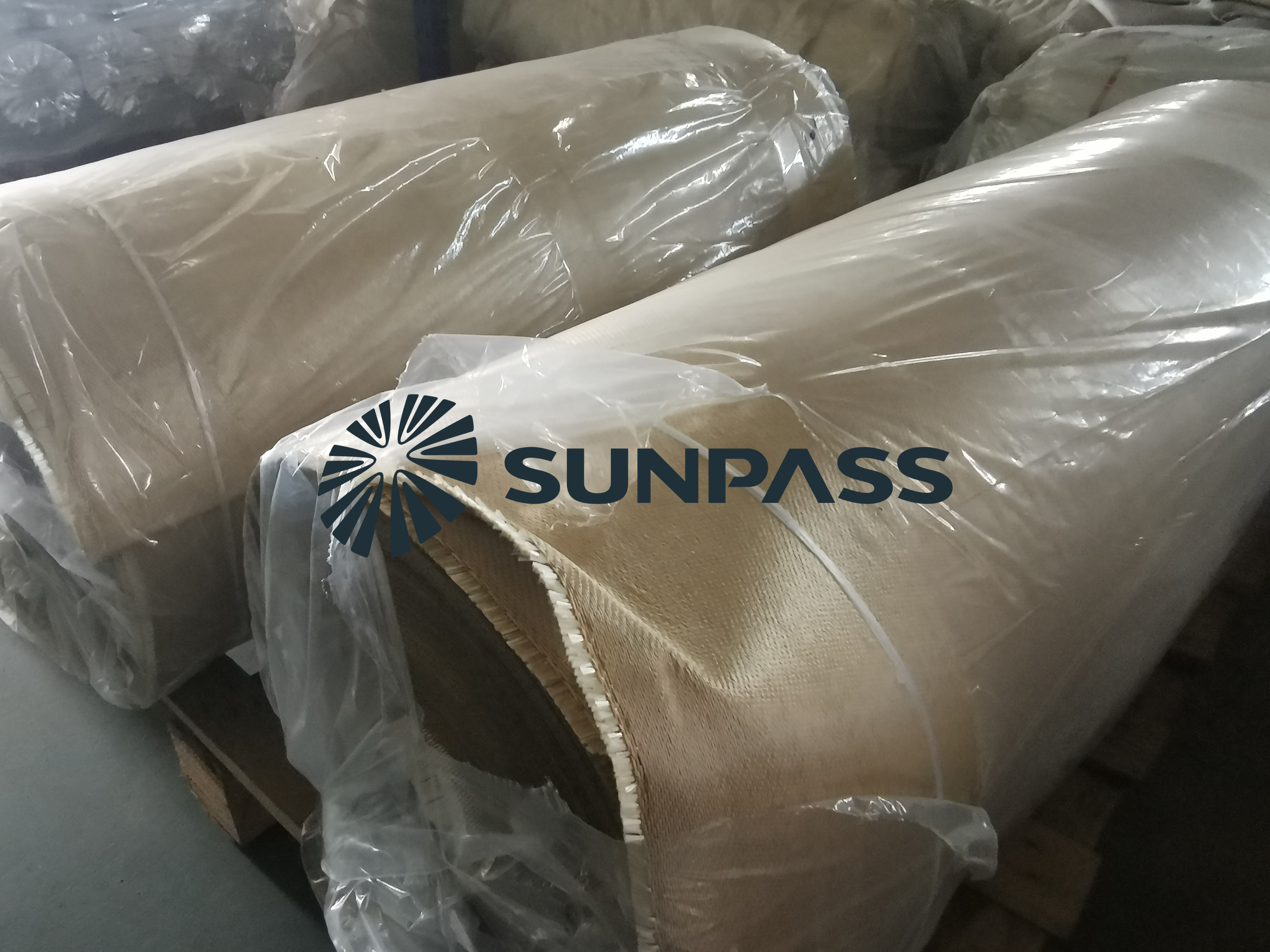

SUNPASS Fiberglass cloth is produced by twisted yarn, with heat treated.
Organics burn out during heat treatment with high flexibility and minimal shrinkage for use in environments where smoking is not permitted.
Mainly used in aviation, shipbuilding, oil exploration and other projects.
Fiberglass cloth Applications:
>Fire protection
>Insulation mattress/jacket cover material
>Welding spark protection blankets/curtains, plumbers pads
>Resistant to chemical corrosion,Corrosion resistant to strong acid, strong alkali, aqua regia and various organic solvents
Fiberglass cloth Applicable Working Medium:
Used at 1000degree F/ 537degree C continuous
Heat treatment to burn out organic i.e. starch or silane on fabrics
Used in places where no smokes allowed
A high-performance very high temperature fabric, used in almost all industries for heat protection.
Fiberglass cloth Specifications:
Property |
Description |
Valvue |
|
English |
Metric |
||
Weave Style |
Satin |
- |
- |
Thickness |
- |
0.03inch |
0.8mm |
Weight |
- |
26oz/yd2 |
880g/m2 |
Widths |
- |
40-60inch |
1-1.5m |
Warp, Ends |
- |
46inch |
1m |
Fill, Ends |
- |
35inch |
0.9m |
Tensile Strength, Initial |
Warp |
630ibs/in |
112.6kg/cm |
Fill |
490ibs/in |
87.4kg/cm |
|
After 3 Hours at 1300ºF (700ºC) |
Warp |
360ibs/in |
64.2kg/cm |
Fill |
240ibs/in |
42.9kg/cm |
|
Temperature Resistance |
Maximum Continuously |
1022℉ |
550 °C |
Thermal Conductivity |
- |
0.09w/m-k |
|
Elongation |
- |
80% |
