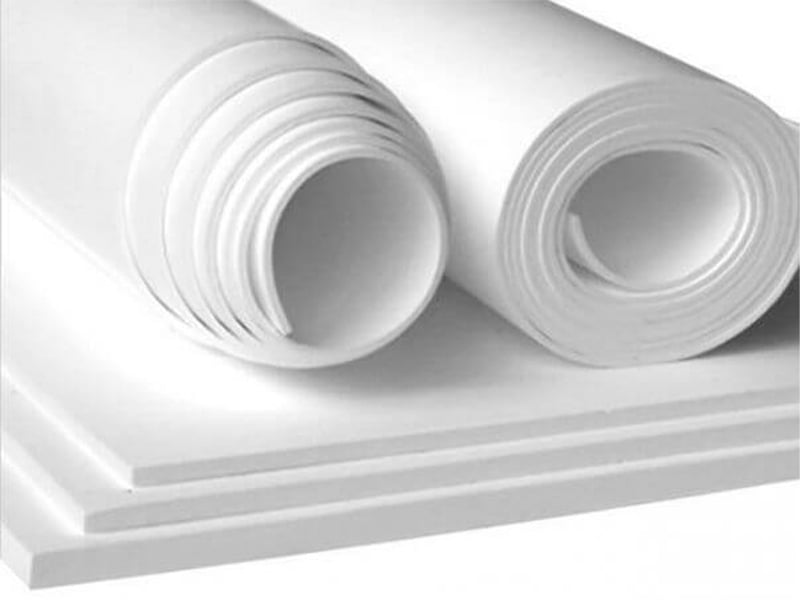

EXPANDED PTFE SHEET

Description:

Tenglong Expanded PTFE Sheet made from 100% PTFE, developed by a highly specific treatment of PTFE Fluorocarbon. It has a high tensile strength, flexibility, hardness, chemical and thermal resistance, making it an excellent material for gasket seals in the most extreme conditions. The product has an unlimited shelf life and will not become brittle, age or otherwise deteriorate in the application.

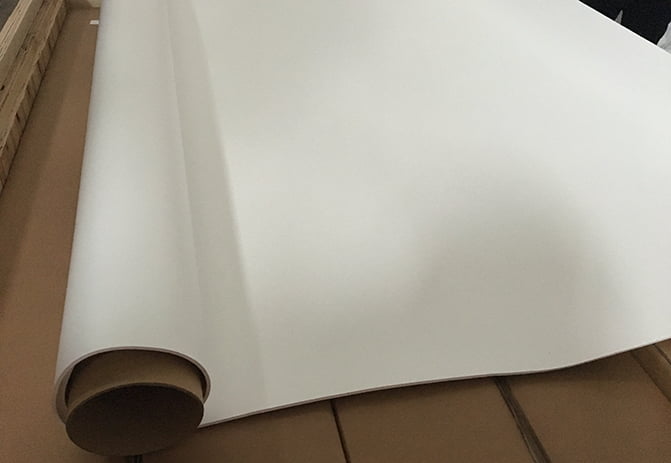

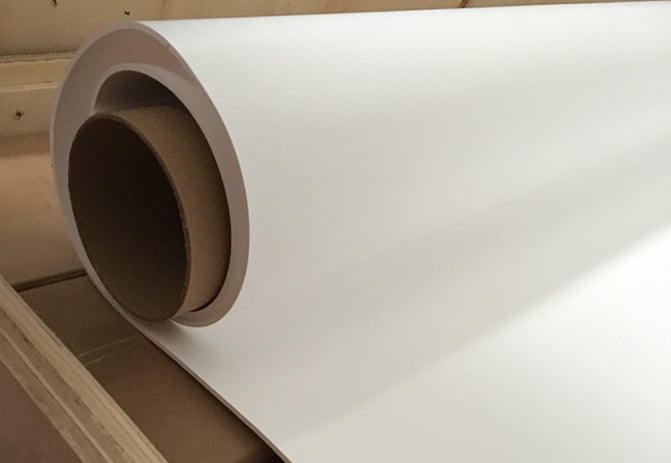

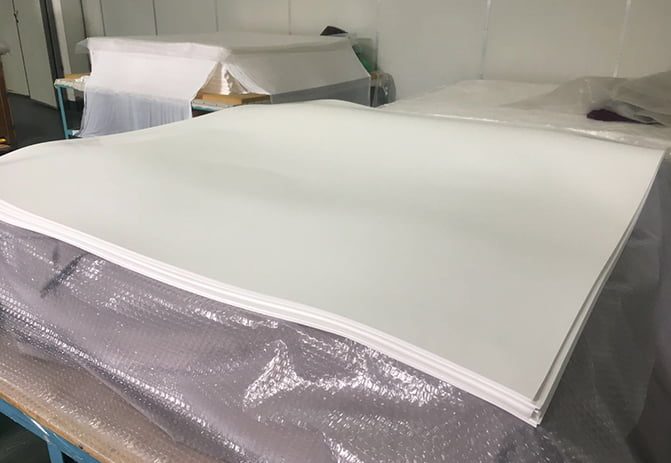

Detail Image

Product Details

Property	Unite	Nominal Value
Density	g/cm3	0.65-0.95
Compressibility	%	45
Recovery	%	15
Length Tensile Strength	Mpa	17
Cross Tensile Strength	Mpa	27
Compressive Strength	Mpa	14.7
Max Compressive Strength	Mpa	20
pH Limit	-	0-14
Specific Gravity	-	0.85 ± 0.04

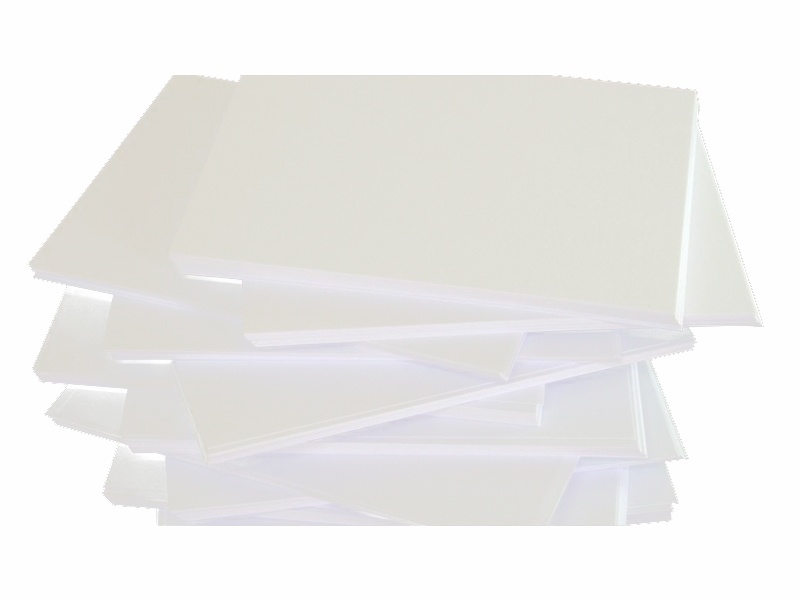

More Styles

Application Data

Advantages

Video

Comparison Vision

Property	Description	Value
		English	Metric
Temperature	Minimum	-320°F	-196℃
	Maximum	600°F	315℃
Color	White	-	-
General Size	Thickness	0.02-0.3 inch	0.4-8 mm
	Sheet Size A Width: 50' ( 1270mm)	50' X 150' (1270mm X 3810mm) 50' X 50' (1270mm X 3810mm)
	Sheet Size B Width: 60' ( 1500mm)	60' X 160' (1500mm X 4100mm) 60' X 80' (1500mm X 2000mm) 60' X 53' (1500mm X 1350mm) 60' X 40' (1500mm X 1000mm) 60' X 180' (1500mm X 4600mm) 60' X 120' (1500mm X 3000mm) 60' X 60' (1500mm X 1500mm)
	Sheet Size C Width: 100'( 2700mm)	106' X 150' (2700mm X 3810mm)

Simply you can wholesale EXPANDED PTFE SHEET direct from manufacturers.

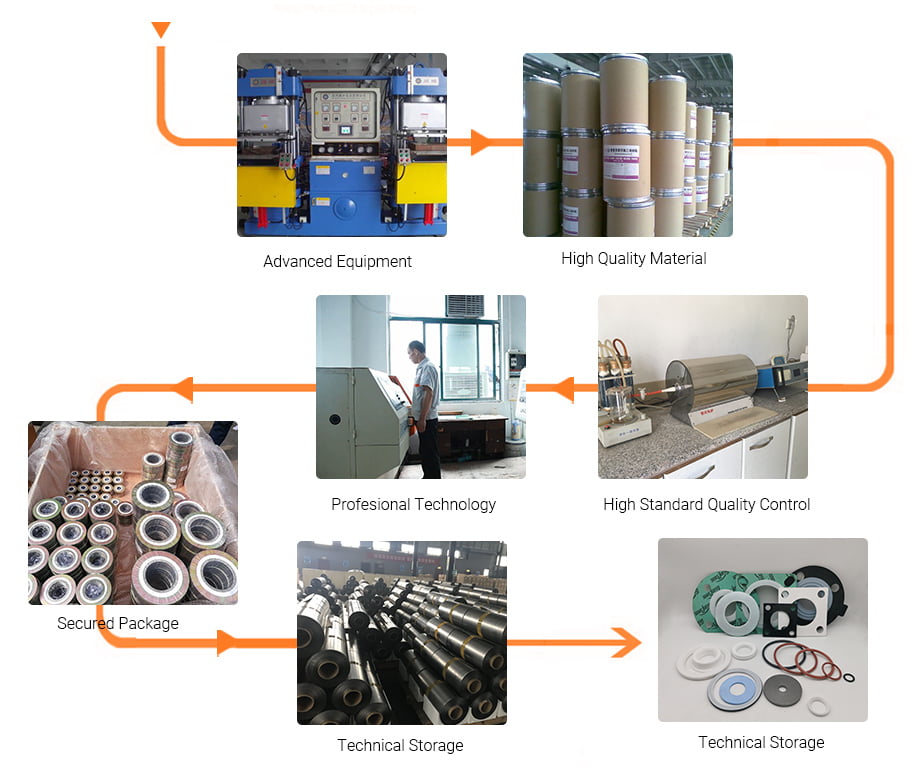

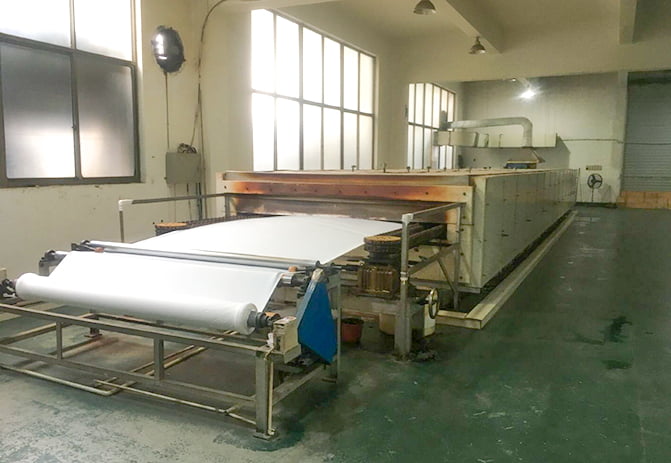

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and EXPANDED PTFE SHEET suppliers known by the world since 2000.
