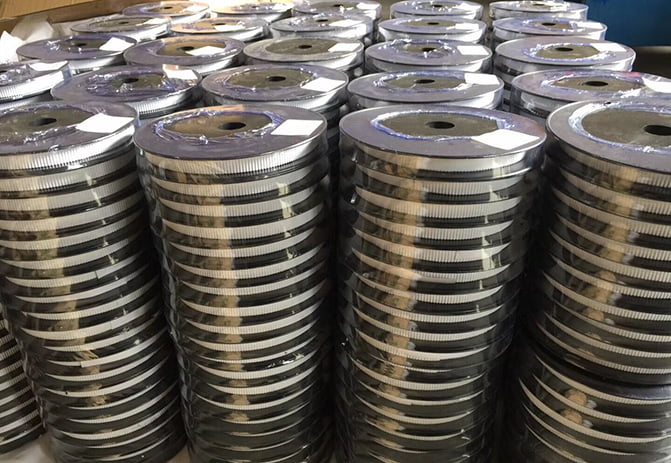

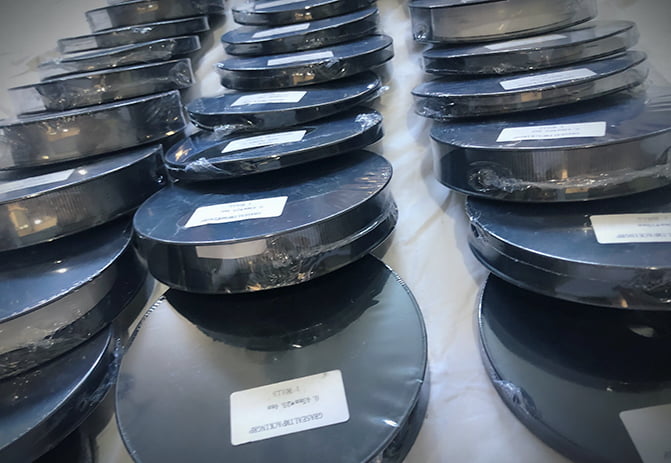

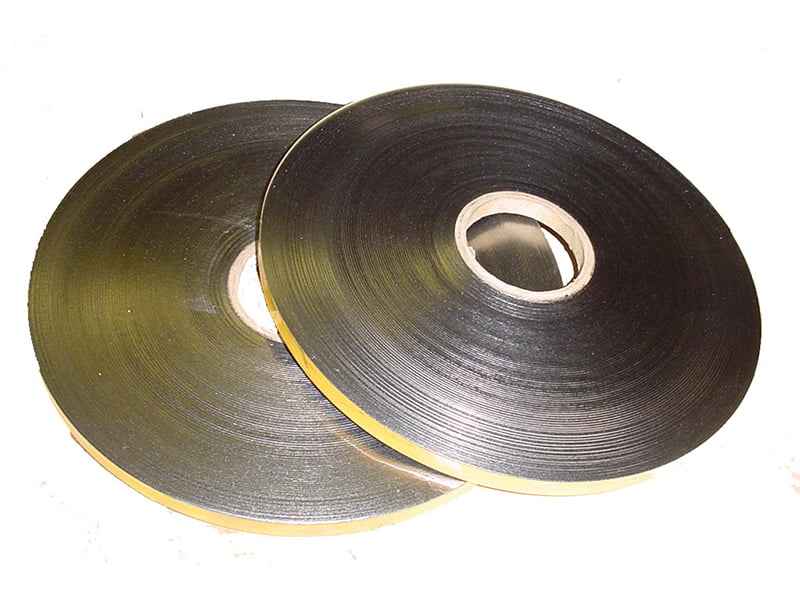

FLEXIBLE GRAPHITE TAPE

Description:

TOP SEALING FLEXIBLE GRAPHITE TAPE is made from expanded graphite yarn braided into through all kinds of technology of braiding . They are almost suitable to all media, such as hot water, steam, acids, alkalis, organic solvents, hydrocarbons, low temperature liquids, etc. The sealing cap ability is more better and safety, it is the most effective composite parts for solving problems, Pure Flexible Graphite Packing is very popular.

FLEXIBLE GRAPHITE TAPE

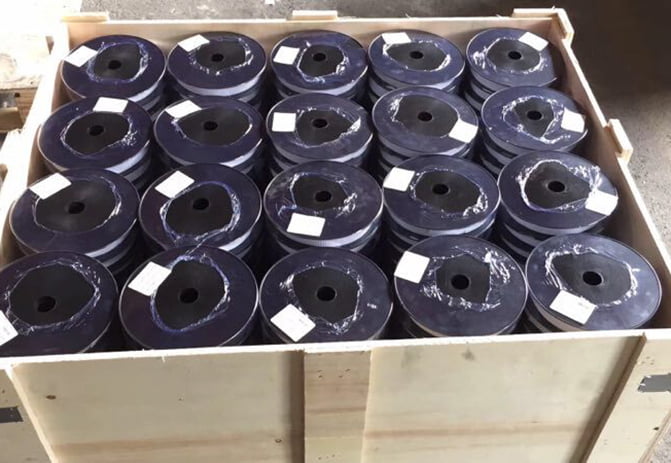

Detail Image

Application Data
Advantages
Video
Comparison Vision

Item

Flexible Graphite Tape

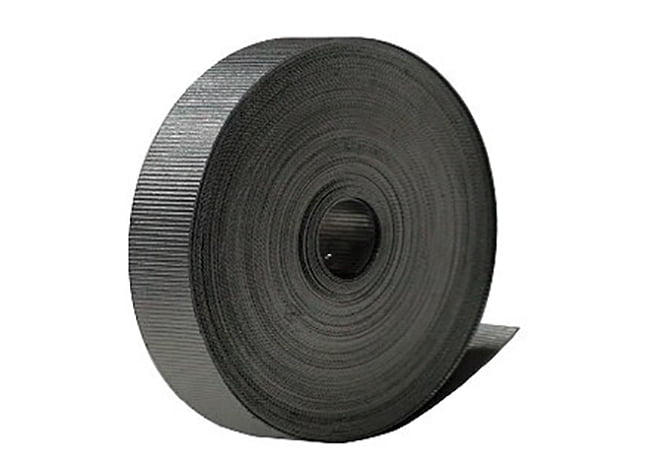

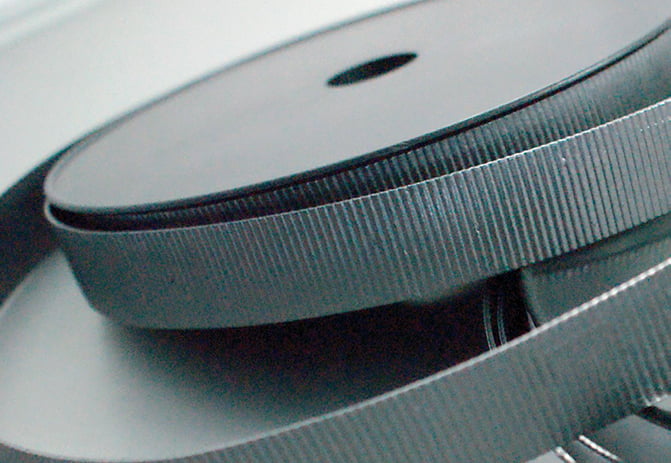

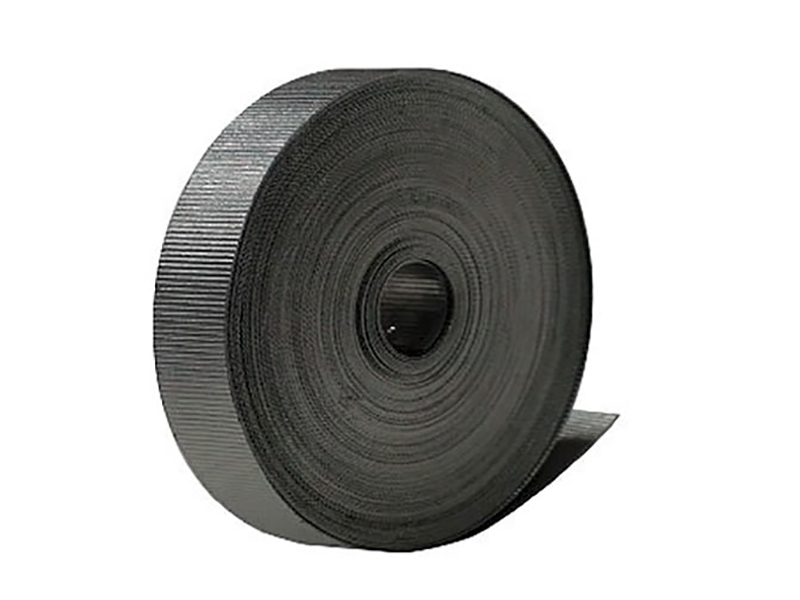

Graphite Corrugated Strip

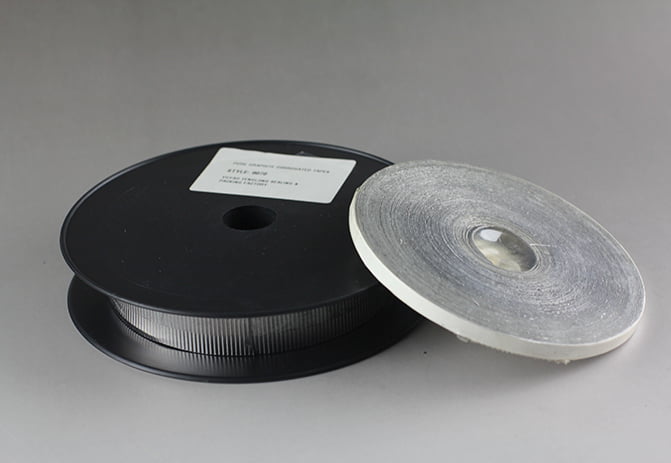

Graphite Corrugated Tape with Adhesive

Style

8050

8070

8080

Density (kg/m3)

0.7-1.3

1.0-1.3

1.4-1.5

Thickness(mm)

0.1-2.0

0.2-1.5

0.2-1.5

Width (mm)

2.5-600

8-80

8-80

Material

Nature Graphite

Carbon Content(Purity)

99.50%

Working Temperature

-40 to +680 °C

Tensile Strength

>4.9 Mpa

Thermal Conductivity

Through Thickness

36 BTU.in/ft2.h.F(5 W/m.K)

Parallel to Surface

960 BTU.in/ft2.h.F (140 W/m.K)

pH Range

1-14

5.1

Compressibility

35%-55%

Recovery

>9%

Ash Content

<0.5%

TAG(450°C)

<1.0%

Total Sulphur Content

1000ppm

Max Temp. Oxyd Atmosphere

680° C

Max Temp. Non oxyd Atmosphere

3000 °C

Chloride content

<50 ppm

Inhibitor (against oxidation)

with anorganic

Iron content

< 1800 ppm

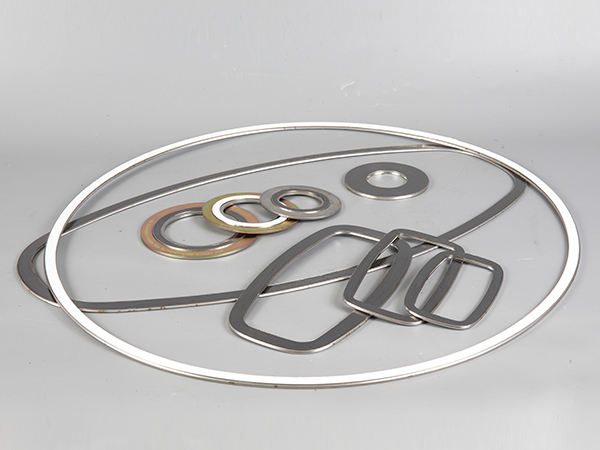

Resilience and excellent sealing performance, mainly used for non-metallic filling materials of metal wound gaskets, graphite packing rings, coated mats, adhesive graphite strips, graphite corrugated strips and backed graphite corrugated strips.
