EXPANDED PTFE JOINT SEALANT

Description:

TOP SEALING EXPANDED PTFE JOINT SEALANT is made with unsintered PTFE. PTFE is resistant to all chemical products and solvents with the exception of alkaline materials. It has good resistance to elevated pressures and has a high thermal stability. Expanded PTFE tape is odourless and tasteless making it suitable for food applications.

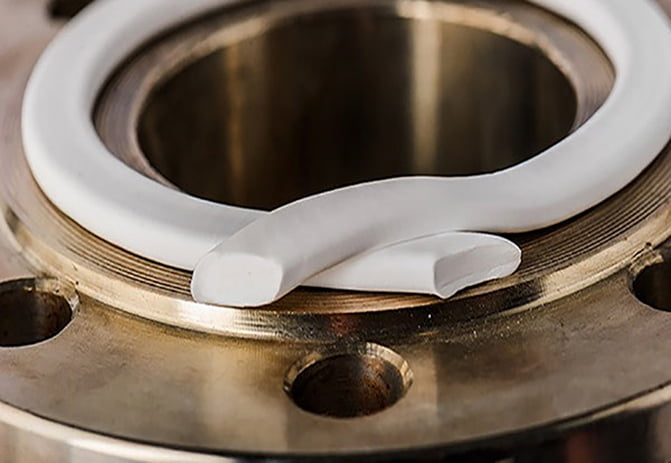

EXPANDED PTFE JOINT SEALANT

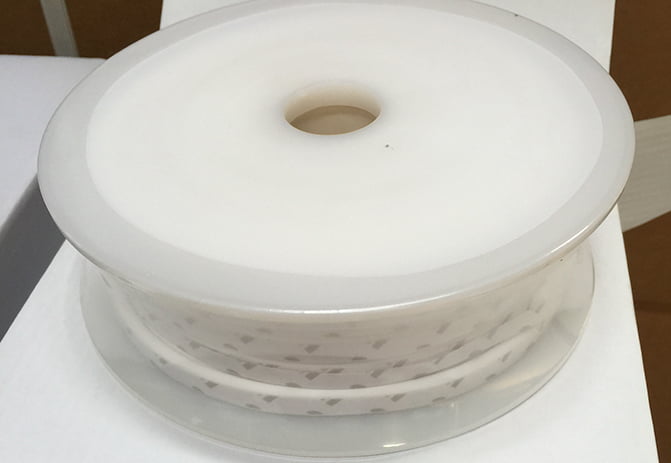

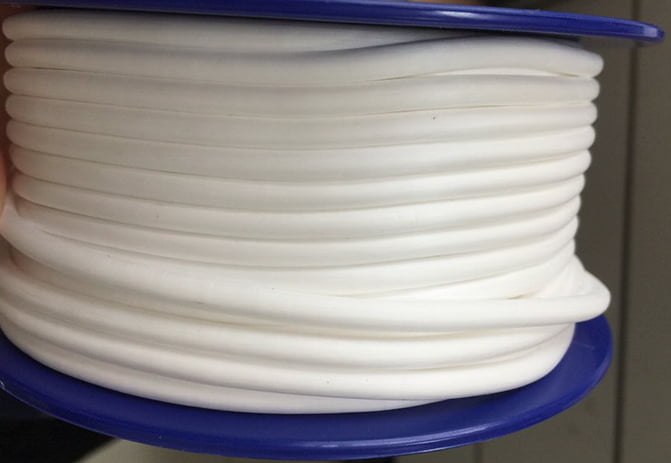

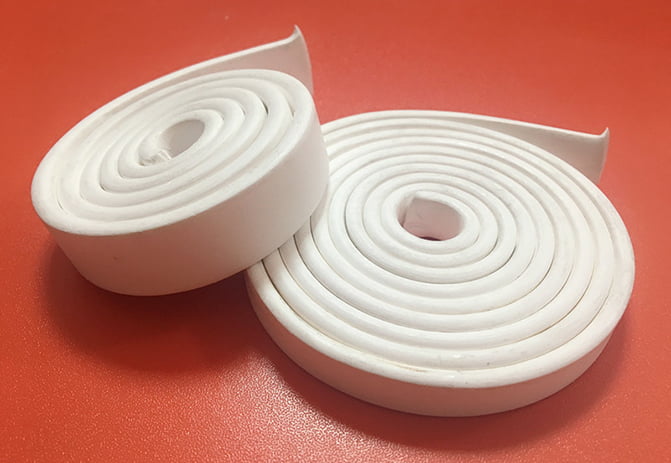

Detail Image

Product Details

Description\ Item PTFE (Polytetrafluoroethylene)
English Metric
Tensile strength 1,500-3,000psi 103-206bar
Flexural modulus 72,000psi 4964bar
Izod Impact Notched 3.5ft-lbs/in 7KJ/m2
Heat Deflection Temperature at 66 psi 250℉ 120℃
Continuous Temperature Maximum  500℉ 260℃
Water Absorption Immersion 24 hours <0.01%
Coefficient of Linear Thermal Expansion 8.9in/in/ºFx10-5
Coefficient of Friction Dynamic 0.1

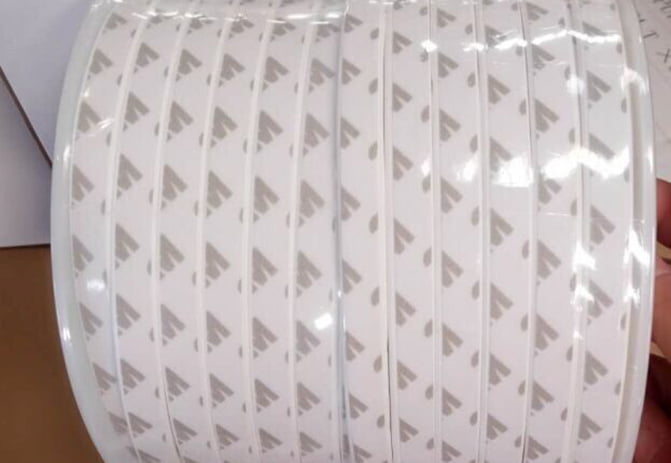

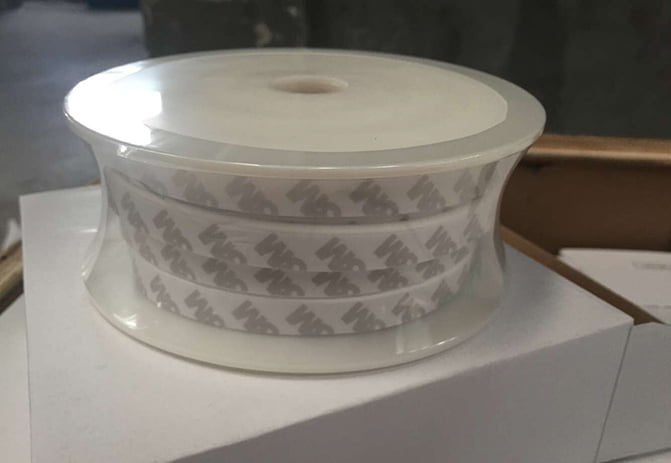

More Styles

Application Data
Advantages
Video

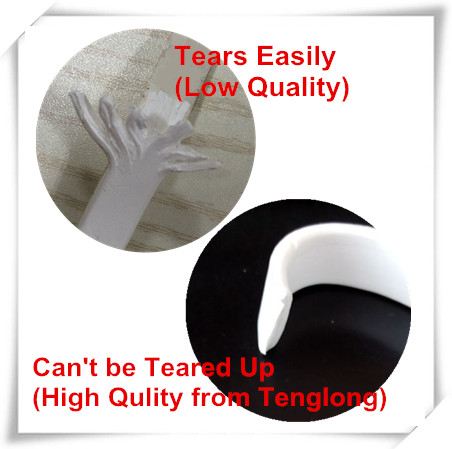

Comparison Vision
Property Description Value
English Metric
Material 100% Expanded PTFE - -
Color White - -
Temperature
Limits
Continuous -450℉ to 525 ℉ -268℃ to 273 ℃
Intermittent -450℉ to 600℉ -268℃ to 315℃
Tensile Strength   1015Psi 7Mpa
Elongation at Break - 140%
pH range - 0-14
Compressibility - 52%
Salability - 0.03ml/hr
Size Thickness 0.08-0.4in 2-10mm
Width 0.1-1.6in 3-40mm
Length 195in, 390in,
590in, 787in
5m, 10m,
15m, 20m

Simply you can wholesale EXPANDED PTFE JOINT SEALANT direct from manufacturers.

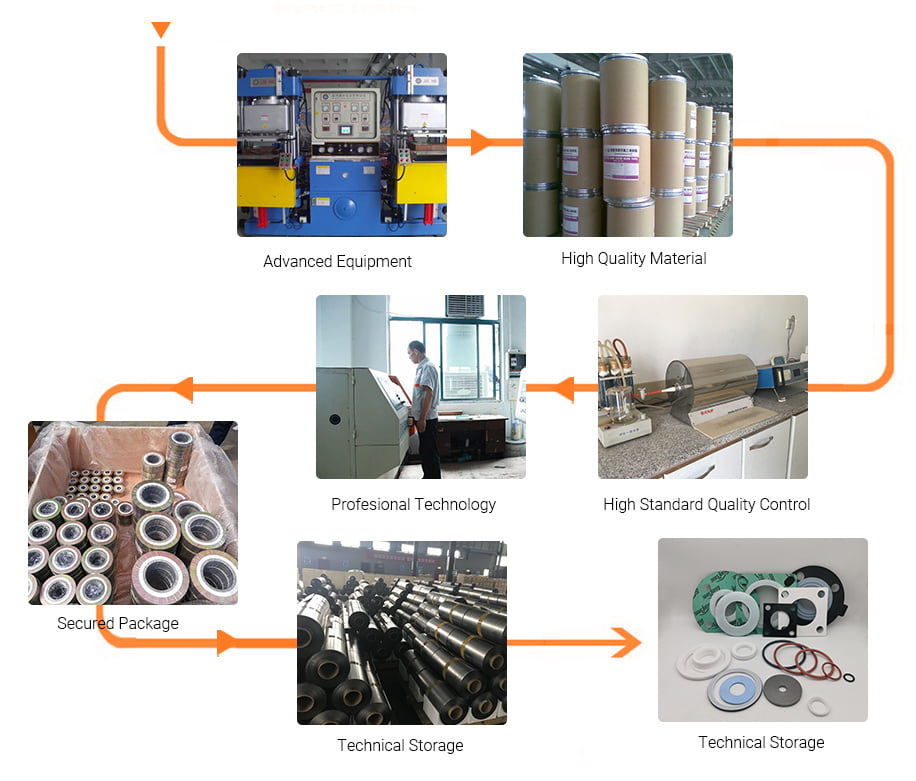

Professional Manufacturer
