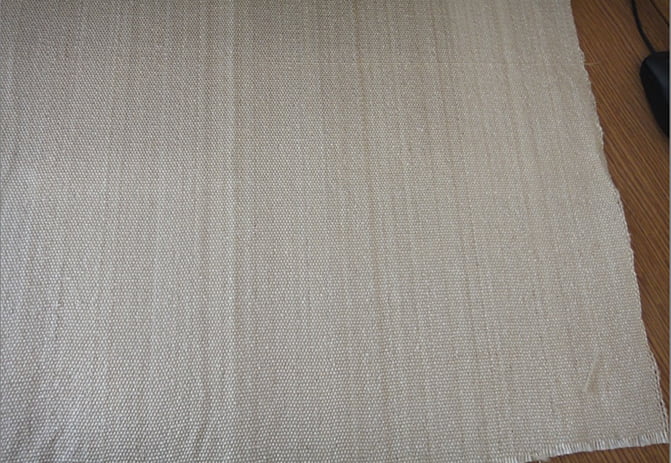

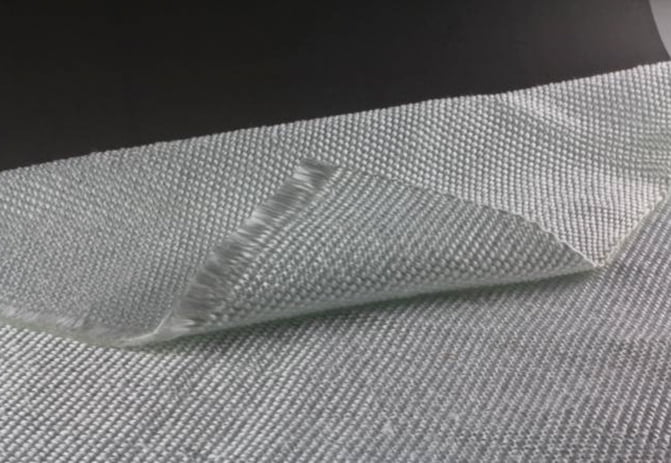

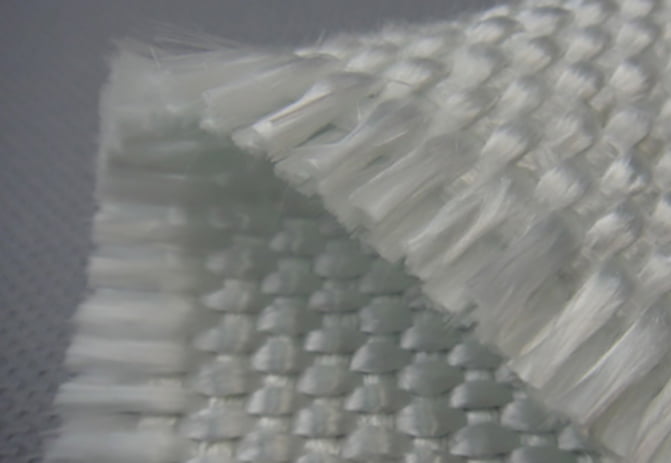

TOP SEALING TEXTURIZED FIBERGLASS FABRIC is made by texturized yarn with high temperature resistance, high strength after puffing process .Texturized Fiberglass Cloth is a new type of fabric developed on the basis of continuous glass fiber filter cloth. Due to the yarn is fluffy and have good air permeability, which can improve the filtering efficiency, reduce the filtration resistance, higher dust removal efficiency can reach more than 99.5%.
| Description\Style No. | 3800-08 | 3800-10 | 3800-15 | 3800-20 | 3800-30 | |
| Weight | English | 18 oz/y2 | 24 oz/y2 | 30 oz/y2 | 36 oz/y2 | 52 oz/y2 |
| Metric | 650 g/m2 | 800 g/m2 | 1000 g/m2 | 1250 g/m2 | 1800 g/m2 | |
| Thickness | English | 0.03 inch | 0.04 inch | 0.06 inch | 0.08 inch | 0.1 inch |
| Metric | 0.8 mm | 1 mm | 1.5 mm | 2 mm | 3 mm | |
| Width | English | 40-70 inch | 40-78 inch | 40-78 inch | 40-78 inch | 40-78 inch |
| Metric | 1-1.8 m | 1-2 m | 1-2 m | 1-2 m | 1-2 m | |
| Temperature | English | 550 ℃ | ||||
| Metric | 1000 ℉ | |||||
| Weave | Plain | |||||

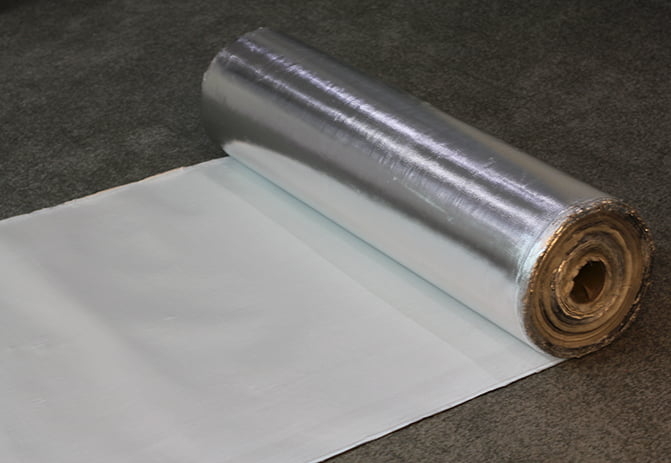

| Coating & Treatment | Aluminum Foil, Vermiculite, Graphite, PU, PVC, Silicone and Heat Treated | |||||
| Color | Yellow, Black, Red, Golden | |||||
| Property | Description | Value and Tolerance | |
| English | Metric | ||
| Tensile Strength |
Warp | 200-400ibs/in min. avg. |
35-70n/mm min. avg. |
| Fill | 100-200ibs/in min. avg. |
17.5-35n/mm min. avg. |
|
| Tear Strength |
Warp | 50ibs min. avg | 8.75n/mm min. avg. |
| Fill | 25ilbs min. avg | 4.375n/mm min. avg. |
|
| Flame Resistance | Flame Out(SEC) | 1second | |
| Afterglow(SEC) | 2.5second | ||
| Char Length (Inches) |
0.3max. avg | ||
| Burst Strength | - | 200ibs/in² min. avg | 14.0618kg/cm² min. avg |
| Hydrostatic Resistance | - | 200ibs/in² min. avg | 14.0618kg/cm² min. avg |
-All types of thermal insulation and heat protection
-Welding blankets and fire curtains
-Expansion joints
-Basic cloth for coatings and laminations
Simply you can wholesale TEXTURIZED FIBERGLASS FABRIC direct from manufacturers.
Features
· Corrosion resistance
· Electrical insulation
· High strength
· Base material for coating, impregnating and laminating
· Flexible, can be wrapped around complex shapes

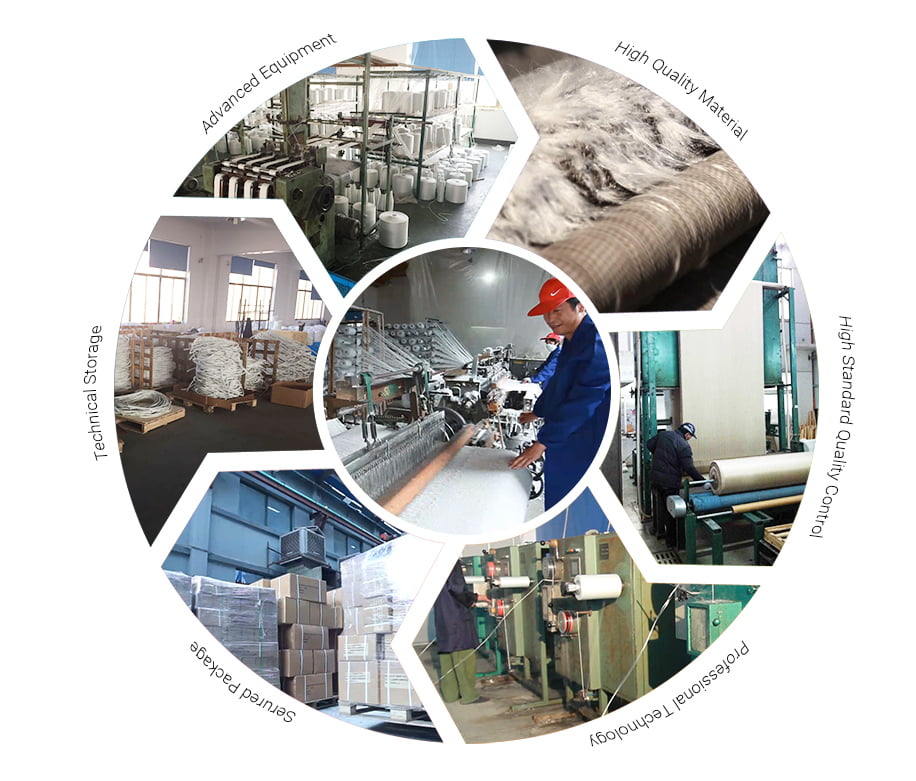

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and TEXTURIZED FIBERGLASS FABRIC suppliers known by the world since 2000.
