CERAMIC FIBER CLOTH

Description:

1.TOP SEALING CERAMIC FIBER CLOTH is a woven fabric that is manufactured from high purity alumino-silicate based ceramic fiber, reinforced with fiberglass filament and optional alloy steel wire.
2.Ceramic fiber cloth is designed to meet the toughest thermal, mechanical and electrical performance requirements.
3.Ceramic fiber cloth is white and odorless, suitable for high temperature applications up to 2300°F.
4.When used in industrial furnaces, it can serve as thermal barriers to separate different temperature zones or the fabrics can serve to prevent particulate shedding.

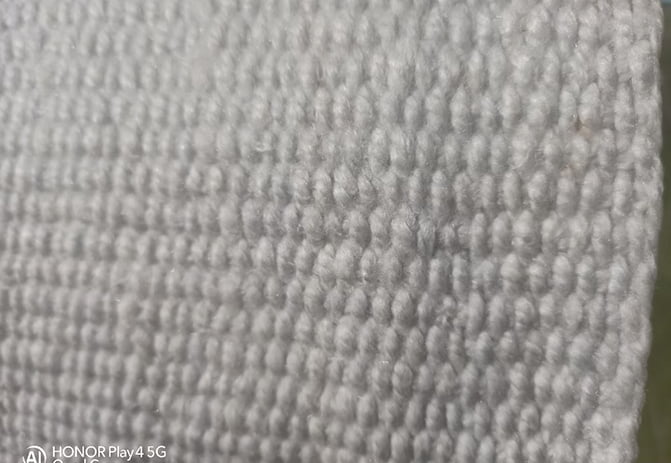

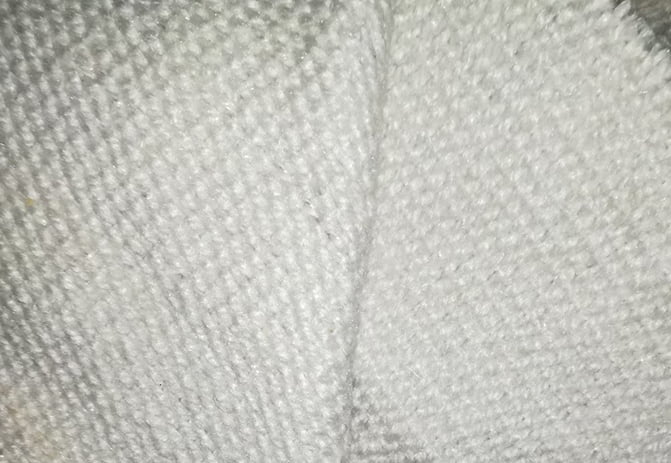

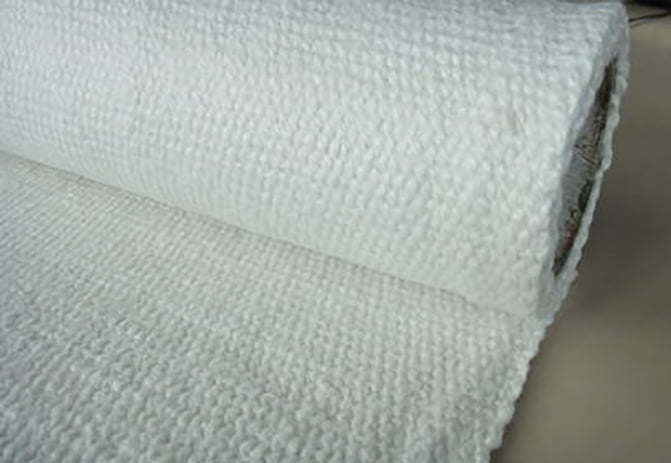

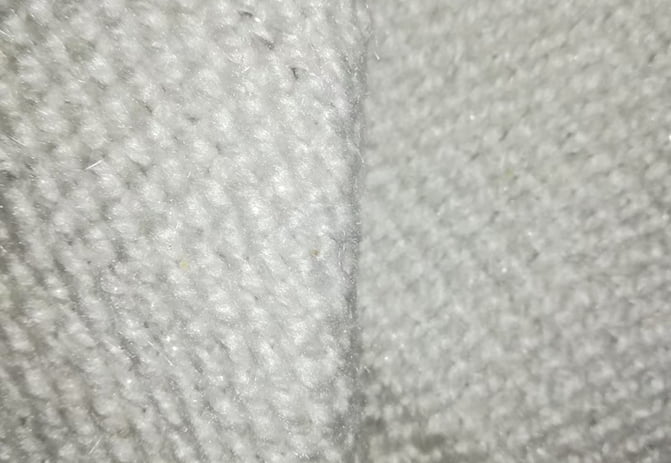

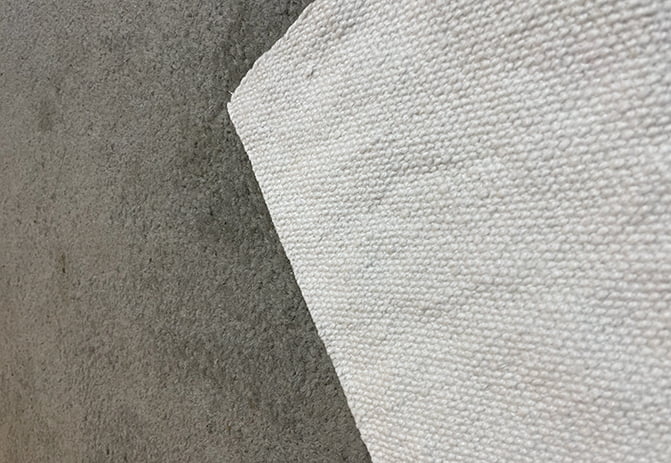

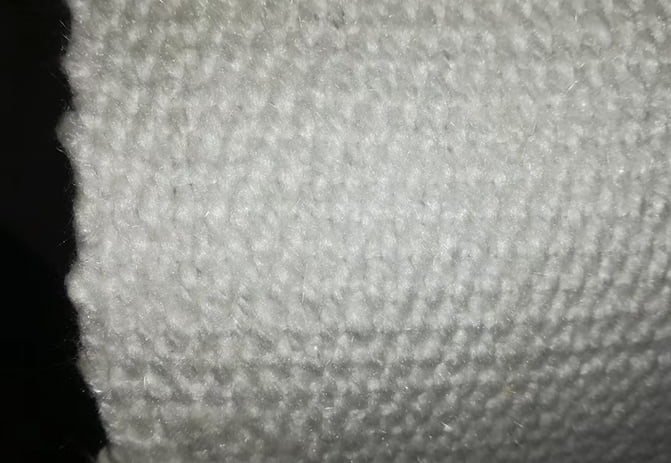

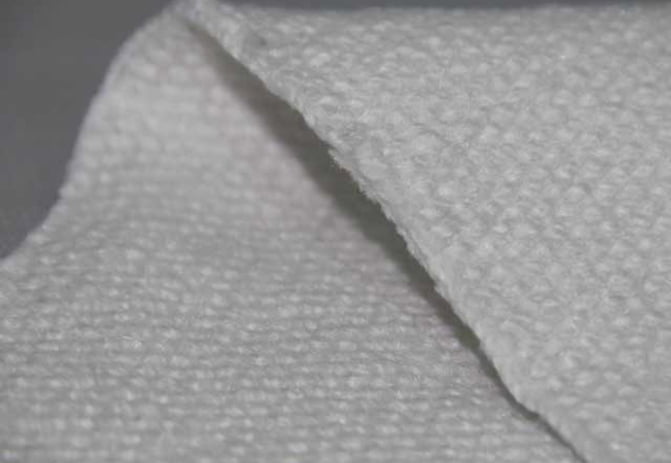

Detail Image

Product Details

Features :
·Low thermal conductivity
·Fire and flame proof
·High temperature stable
·Lightweight, woven texture with excellent handling strength

Description\Item		Ceramic Fiber Cloth With Fiber Glass Reinforced	Ceramic Fiber Cloth With Metal Reinforced
TENGLONG style		4400	4400S
Reinforced Material		Glass Filament	Stainless Steel
Classification Temperature	English	2300℉	2300℉
	Metric	1260℃	1260℃
Maximum Operating Temperature	English	1562℉	1922℉
	Metric	850℃	1050℃
Chemical Stability		Good	Good
Electrical Insualtion Property		Better	Good
Strength		Good	Better

More Styles

Application Data

Advantages

Video

Comparison Vision

Description\Item		Ceramic Fiber Cloth With Fiber Glass Reinforced	Ceramic Fiber Cloth With Metal Reinforced
TENGLONG Style		4400	4400S
Fiber Diameter		2-4um
Density	English	31.25±0.94 lb/ft3	31.25±1.88 lb/ft3
	Metric	500±15 kg/m3	500±30 kg/m3
Color		White

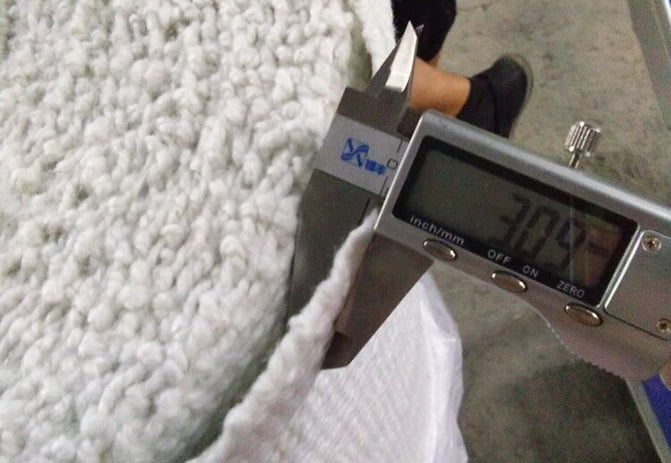

Thickness	English	0.06-0.24inch
	Metric	1.5-6mm
Width	English	0.79-39.37inch
	Metric	20-1000mm
Chemical Composition	Al2O3+SiO2	≥96%
	Al2O3	≥45%
	Fe2O3	≤1.2%
Water Content		≤1
Organics Content		≤15
Moisture		≤1.0%
Heating Linear Shrinkage		≤3.5% (1000℃x3 hrs)
High-temp Loss on Lgnition		≤20%

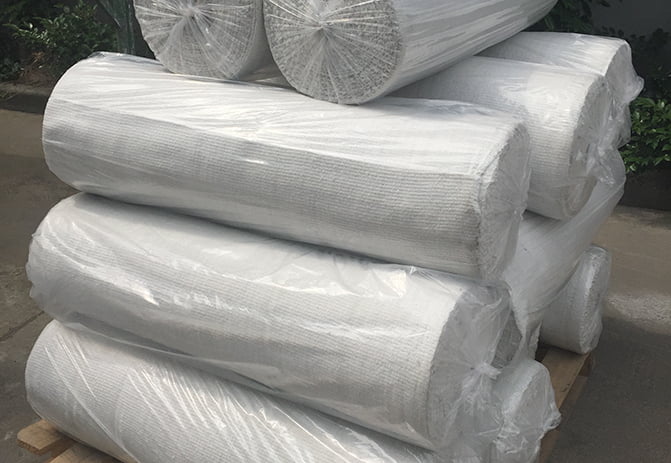

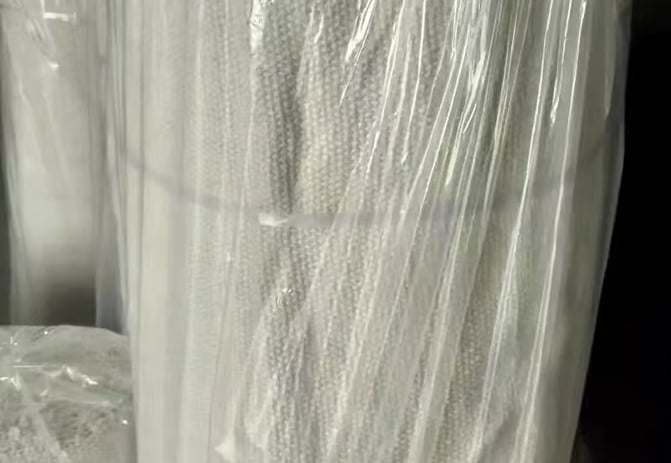

Package		25M, 30M, 50KG /plastic woven bag or according customers request

-Heat insulation furnace curtain, large area thermal insulation.

-Radiant heat shielding, flexible fabric expansion joints for high temperature piping.

-Safety blankets, welding blankets, protective and insulating covers, gaskets, cable or pipe wrapping, etc.

Simply you can wholesale CERAMIC FIBER CLOTH direct from manufacturers.

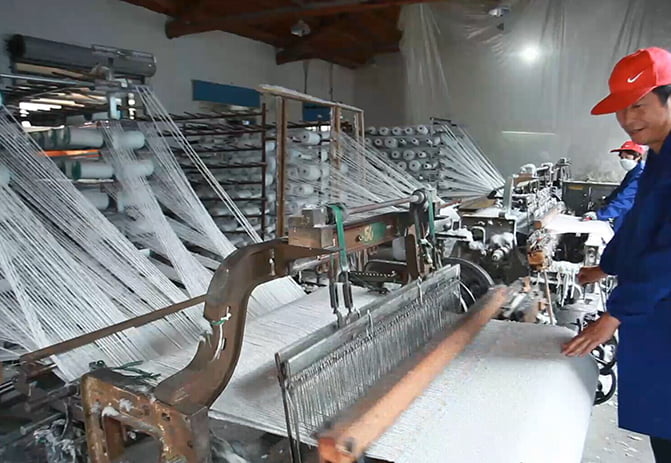

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and CERAMIC FIBER CLOTH suppliers known by the world since 2000.
