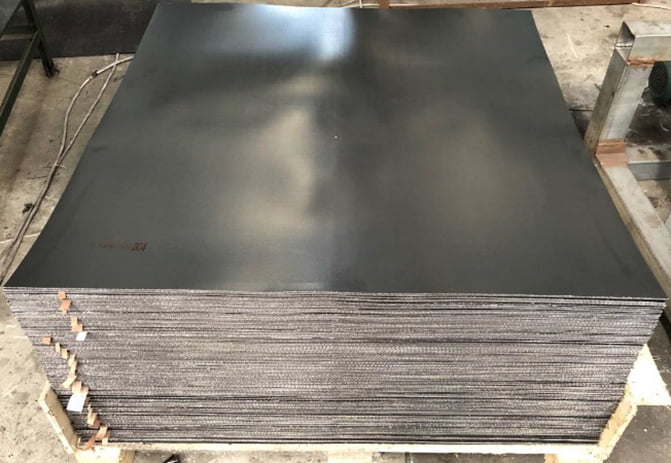

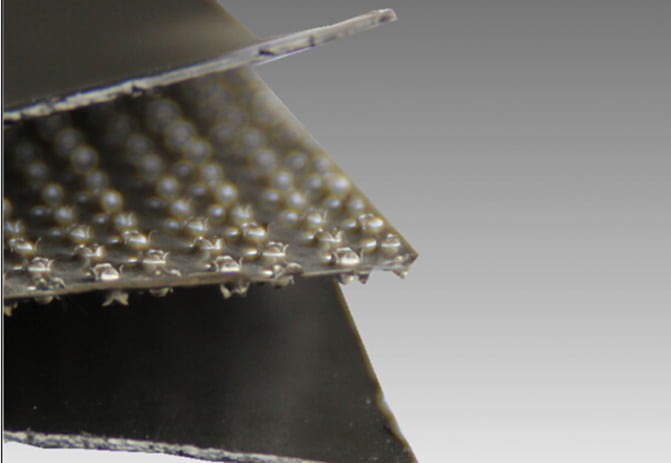

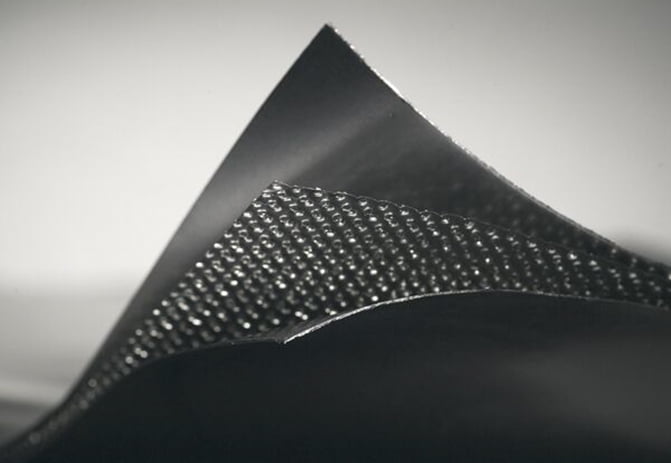

The two sides of TOP SEALING Graphite Sheet are pure expanded graphite plates with a metal core thickness of 0.1 mm and a stainless steel material of SS316L/SS304/carbon steel/Nickel 600#. The graphite layer and the metal core are bonded by mechanical and glue. Because graphite slabs have the characteristics of heat resistance, pressure resistance and corrosion resistance under extreme conditions, they are widely used in the automotive, refining and petrochemical industries.
| Property | Data | ||

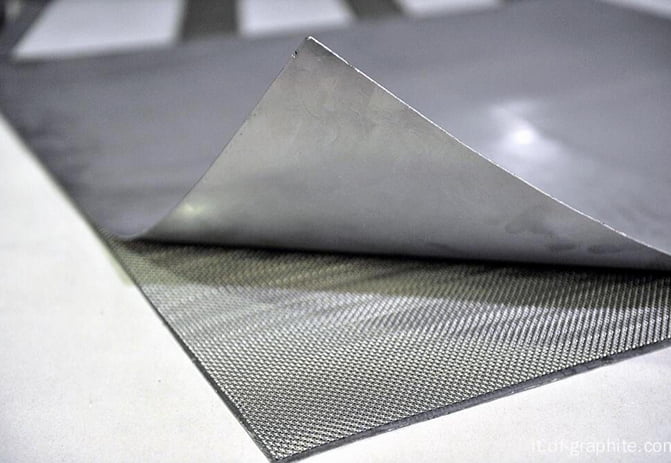

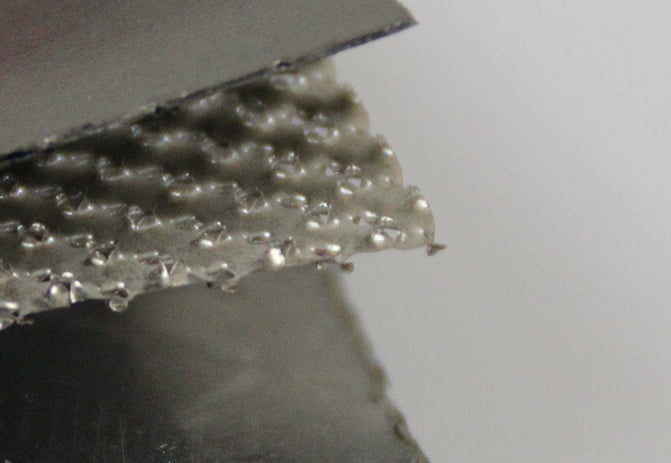

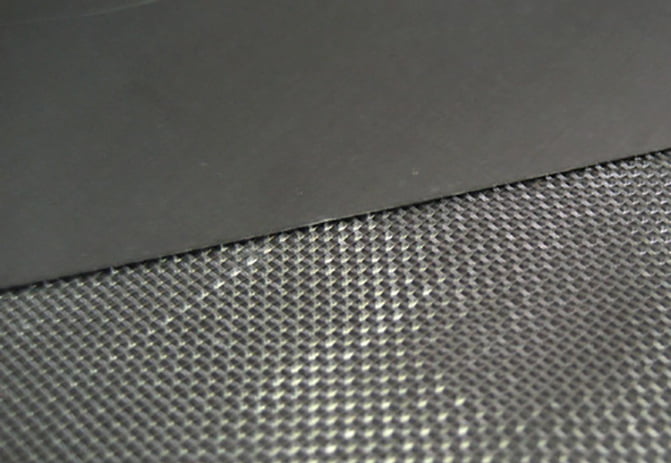

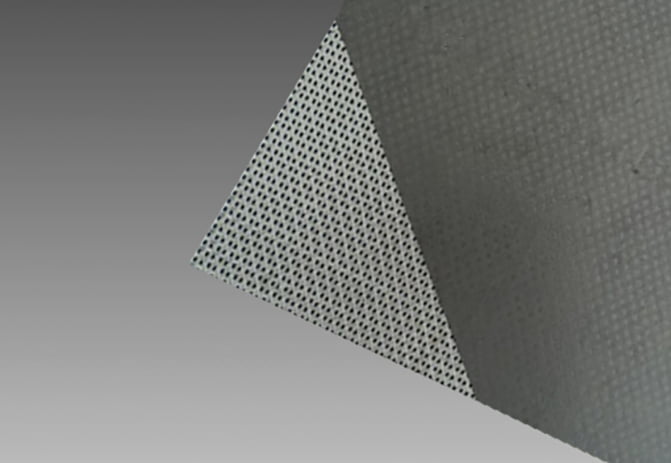

| Metal Style | Tanged/Flat/Mesh | ||
| Thickness (MM) (±5%-10%) | 1MM/1.5MM/2MM/3MM/4MM | ||
| Size |
1000MM*1000MM; 1500MM*1500MM; 1000MM*2000MM; 1500MM*2000MM; |
||
| Metal | 0.1MM, SS316L | ||
| Density of pure graphite sheet | 1.0-1.1 g/cm3 | ||
| Temperature | steam | 700℃(1292℉) | |
| Oxidation | -260 -650℃(-1202 -1202℉) | ||
| No oxidation | -260 -3000℃(-260 -5432℉) | ||
| C content (%) | ≥99 | ||
| Tensile Strength (MPa) | ≥5.2 | ||
| Compression Rate (%) | 25-45 | ||
| Resilient Rate (%) | 15-20 | ||
| PH | 0-14 | ||
| Pressure | 80-100MPa | ||
| Ash content (%) | ≤1% | ||
| Thermal Weight Loss (%) | 454℃(850℉) | ≤5% | |
| ≤80℃(1200℉) | ≤15% | ||
| S content (μg/g) | ≤1300 | ||
| Chlorinity (μg/g) | ≤45 | ||
· Heat and flame resistant
· Low creep relaxation and no aging
· Flexible and conformable nature
· Chemical resistant, compatible with most chemicals
· Electrical conductive
Simply you can wholesale FLEXIBLE GRAPHITE COMPOSITE SHEET direct from manufacturers.
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and FLEXIBLE GRAPHITE COMPOSITE SHEET suppliers known by the world since 2000.
