TOP SEALING OVAL OCTAGONAL RING JOINT GASKET are precision machined metallic gaskets generally used in high pressure applications such as the Oil, Gas, Petrochemical and Offshore industries.

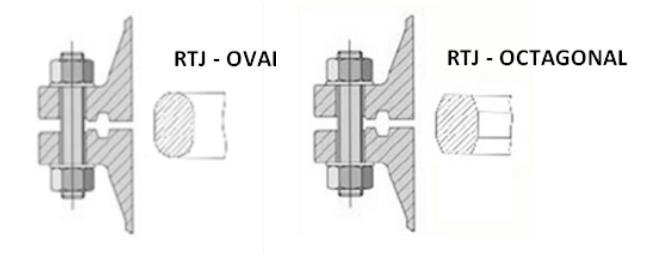

Oval and Octagonal section Ring type Joints are designed for flanges with standard ring type grooves. These standard shapes are used to seal pressures up to 5,000 psi in accordance with API 6A.
| Product | Materials | Surface Pressure(N/mm2) | |||
| T=20℃ | T=300℃ | ||||
| min | max | min | max | ||
| (OVAL and OCTAGONAL) | Mild Carbon Steel 11.003 |
235 | 525 | 235 | 515 |
| Stainless Steel 14.541 |
335 | 750 | 335 | 630 | |
| Stainless Steel 14.828 |
400 | 900 | 400 | 750 | |
| Alloy-Steel 15.415 |
300 | 675 | 300 | 585 | |
| Alloy-Steel 17.362 |
400 | 900 | 400 | 730 | |
| Monel 24.360 |
200 | 660 | 260 | 650 | |
Simply you can wholesale OVAL OCTAGONAL RING JOINT GASKET direct from manufacturers.
1.Sunpass Oval shape gasket is belong to API 6A R series
2.These gaskets are used in pressures up to 10,000 PSI.
3.The oval type is the only gasket that will fit a bottom radiused groove.
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and OVAL OCTAGONAL RING JOINT GASKET suppliers known by the world since 2000.
