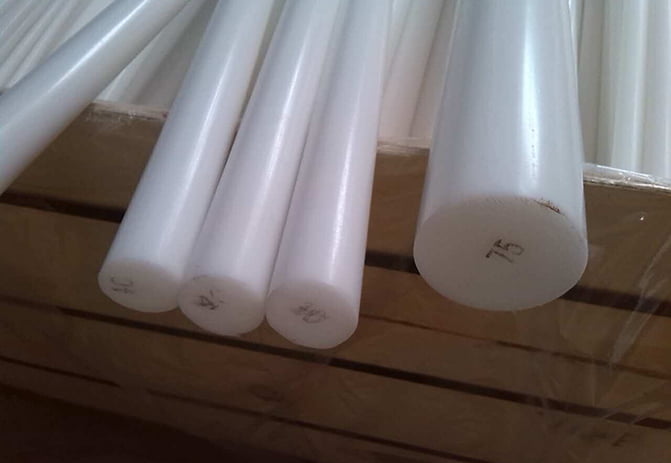

PTFE ROD

Description:

TOP SEALING PTFE ROD Features:
1. There are two kinds of PTFE rods to offer.
2. One is manufactured by paste extruding method in the diameter from 4 to 9mm and the other is made by ram extruding method is the diameter from 10mm to 50mm.
3. Over the diameter 50mm are manufactured by moulding.
4. PTFE is the most chemical-resistant of all known plastics.
5. It does not age.
6. PTFE has a wide range of practicable temperature from -180C to +260C and a wax-like surface 7. to which anything hardly sticks.
8. PTFE has the lowest coefficient of friction of all known solid materials.
9. It has the best electrical properties of all plastics.

Detail Image

Product Details

Molded PTFE Rod Applications:
1. Electrical insulation, seal, ant sticking materials.

Molded PTFE Rod Material:
100% virgin PTFE, Recycle PTFE. As customer`s request.

Properties	Unit	Result
Apparent density	g/cm3	2.10—2.30
Tensile strength (min)	MPa	14
Ultimate elongation (min)	%	140

More Styles

Application Data

Advantages

Video

Comparison Vision

Diameter(mm)		Length(mm)
Nominal	Tolerance	Nominal	Tolerance
4,5,6	+0.48	100	+5.0
	0
7,8,9	+0.58
	0
110,120,130	+2.5
140,150	0
180,200,250	+3	300	+2.0
270,300	0

Note: When the diameter of rod is larger than 16mm.only test Apparent density

Simply you can wholesale PTFE ROD direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and PTFE ROD suppliers known by the world since 2000.
