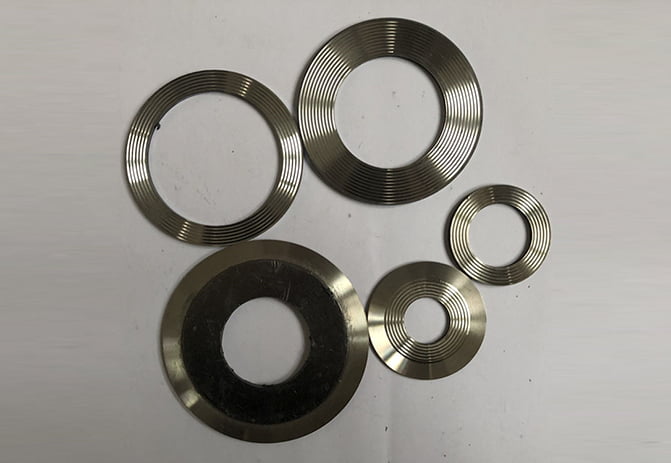

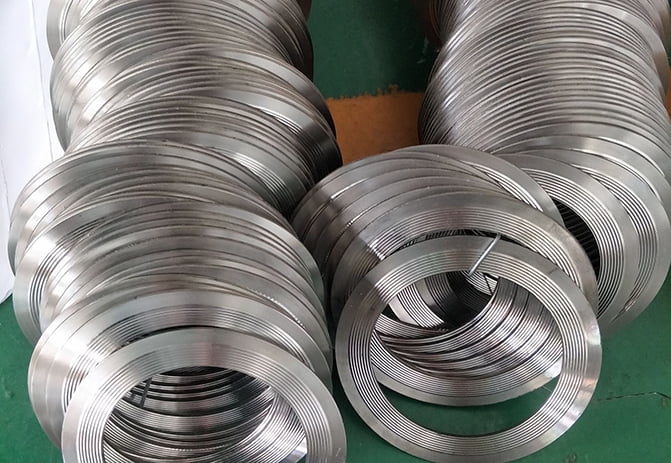

METAL KAMPROFILE SERRATED GASKET

Description:

SUNPASS Metal Kamprofile Serrated Gasket are suitable for the most difficult applications such as superheated steam, high pressure hydrocarbon or chemical service. These gaskets can be find from conventional Electric Power Plants as well as in the Nuclear Power Plants, chemical and petrochemical industries.

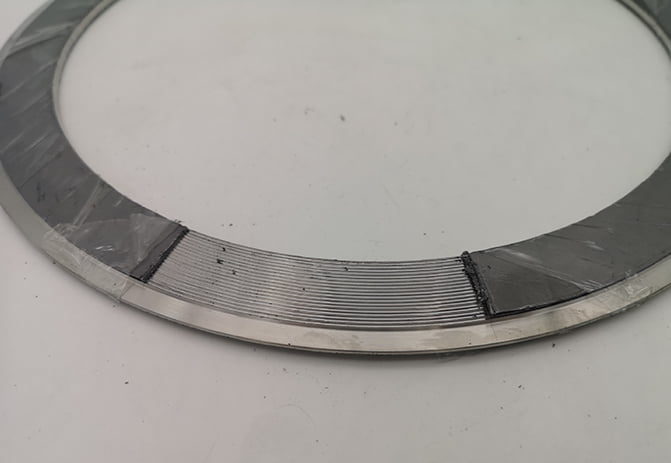

The solid core covers with machined grooves and soft material facing (graphite, PTFE, others),taking SS304L, SS316L, SS321 and other materials available.

Detail Image

Product Details

Product	Materials	Surface Pressure(N/mm2)
		T=20℃		T=300℃
		min	max	min	max
MKG	Carbon Steel/Graphite Carbon Steel/PTFE	15	350	30(1)	210(1)
	1.4541/Graphite 1.4541/PTFE	15	500	30(1)	420(1)
	1.4541/Aluminium	80	500	95	420
	1.4541/silver	125	500	140	420
	Carbon Steel/Graphite Carbon Steel/PTFE	15	350	20(1)	210(1)
	1.4541/Graphite 1.4541/PTFE	15	500	20(1)	420(1)
	1.4541/Aluminium	70	500	80	420
	1.4541/silver	100	500	110	420

More Styles

Application Data

Advantages

Video

Comparison Vision

Simply you can wholesale METAL KAMPROFILE SERRATED GASKET direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and METAL KAMPROFILE SERRATED GASKET suppliers known by the world since 2000.
