Home / Products / Gland Packing / Carbon Gland Packing / PTFE Impregnated Carbonized Fiber Gland Packing

PTFE Impregnated Carbonized Fiber Gland Packing

Description:

1.TOP SEALING PTFE Impregnated Carbonized Fiber Gland Packing STYLE 5600 is made of carbonized poly arcylonitrile fiber and fininshed with PTFE dispersion and lubricant.
2.TOP SEALING PTFE Impregnated Carbonized Fiber Gland Packing STYLE 5600 is to seal water, brine, factory waste, salt solutions, weak acid, mineral oil,etc. For centrifugal pump, mixer, agitator, stern tube. etc. It is inert to almost all corrosive chemicals. It covers wide range of application, relatively economical among non-asbestos packing. It can replace PTFE asbestos packing within wide service range. An ideal packing for paper mill application.

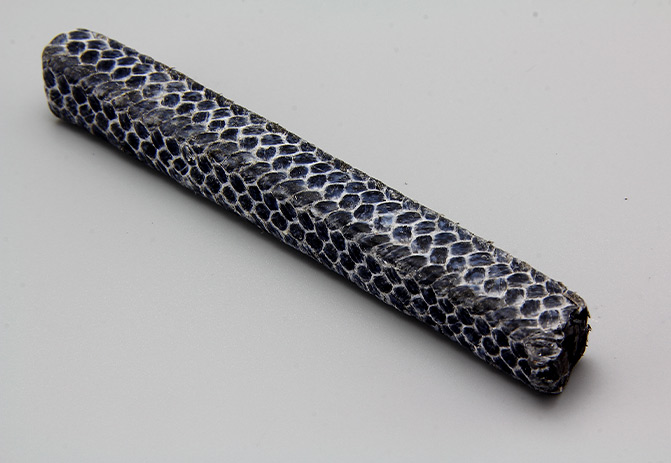

Detail Image

Product Details

Regular:3m, 8m, 1kg, 1 pound, 2.5kg, 2.5 pound, 5kg, 5 pound,10kg, 10 pound.

Other packages are available on request

More Styles

Application Data

Advantages

Video

Comparison Vision

STYLE 5600
Pressure: bar	30	100	100
Speed: m/s	25	2	—
PH Range	2-12
Temp.℃	Max. +300
Density: (g/cm³)	1.3
Size	1/8"-2"
Size	3mm-50mm

STYLE 5600W
Pressure: bar	20	100	180
Speed: m/s	22.8	3	—
PH Range	2-12
Temp.℃	-180 to +260
Density: (g/cm³)	1.35-1.40
Size	1/8"-2"
Size	3mm-50mm

1. Carbonized fiber ptfe packing STYLE 5600 can be used in pumps, agitators mixers and kneader centrifugal pumps, sliders, stirring equipment, valves, paper mill etc.
2. Carbonized fiber ptfe packing STYLE 5600 is suitable for liquid and gaseous, acids, lye, solvents, adhesives, abrasive and crystalline media likesewage etc.

Simply you can wholesale PTFE Impregnated Carbonized Fiber Gland Packing direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and PTFE Impregnated Carbonized Fiber Gland Packing suppliers known by the world since 2000.
