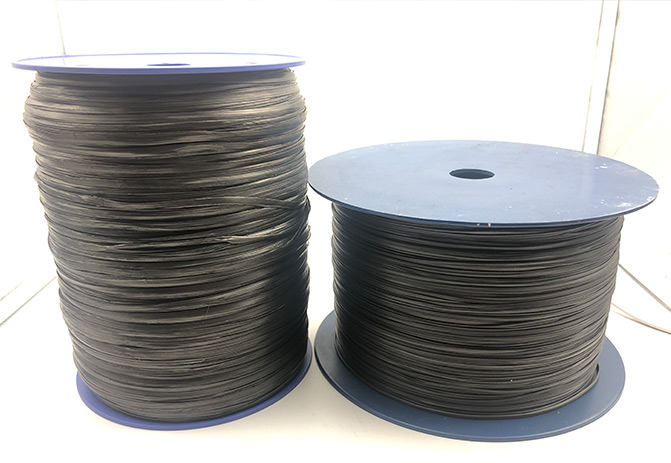

Graphite PTFE Yarn

Description:

TOP SEALING Graphite PTFE Yarn 6200Y and high-pure powdered graphite through special treatment. PTFE graphite yarn has a high strength and low creep and good corrosion resistance. The product is used for braiding of seal packing.

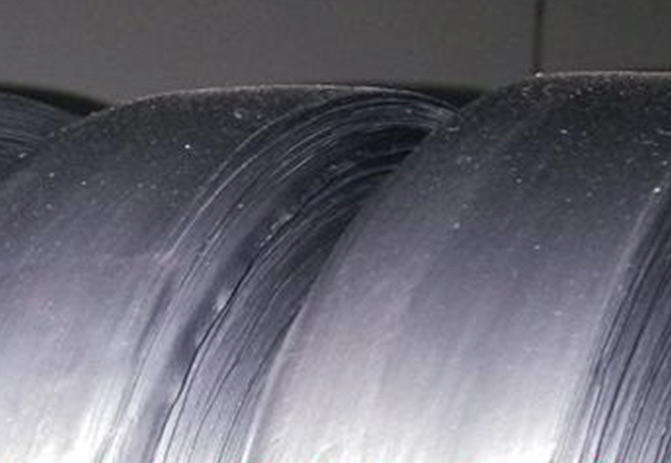

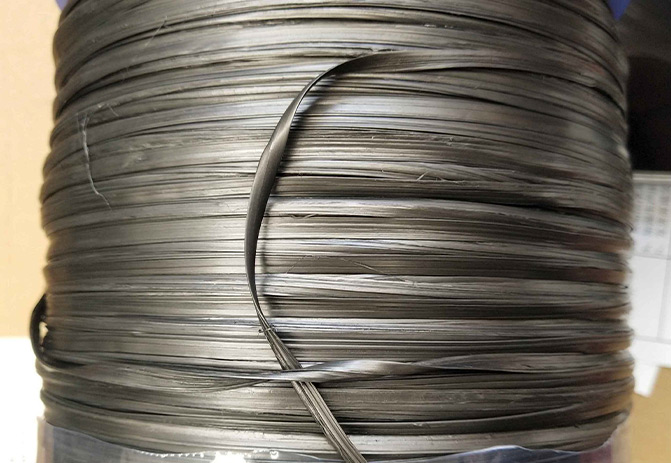

Detail Image

Product Details

Property		Value
Type		Without Oil	With Lubricant
Yarn Count		2500-3500Tex
Plied Yarn		3-6
Density	English	0.04ibs/in3
	Metric	≥1.0g/cm3
Heat Resistance	English	500℉
	Metric	260℃
Content	Graphite	>2%	>2%
	PTFE	97-99%	97-99%
	Oil	-	1%
Shaft Speed	English	590-788in/s
	Metric	15-20m/s
Shrinkage		14%
Elongation		6%
Breaking Force		≥33N
LOI		<3%
Size	English	-
	Metric	1.5g/m, 2g/m, 3g/m, 5g/m

More Styles

Application Data

Advantages

Video

Comparison Vision

Simply you can wholesale Graphite PTFE Yarn direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Graphite PTFE Yarn suppliers known by the world since 2000.
