PTFE Impregnated Graphite Gland Packing

Description:

TOP SEALING PTFE Impregnated Graphite Gland Packing STYLE 5200 is made from Expanded Flexible Graphite packing is impregnated with PTFE emulsion as a blocking agent thus creating a nonstraining packing.
It is recom m ended to be widely used in general serxn ce pumps where a high quality performance product is needed in Food industries, Pulp and Paper Mills etc.
STYLE 5200 is a multi-purposes packing that is compatible with virtually most ofthe industrial fluids it does not deteriorate due to age, and minimizes shaft wear The inherent properties of Style 5200 contribute to the long life of packing rings because of its outstanding mold ability.

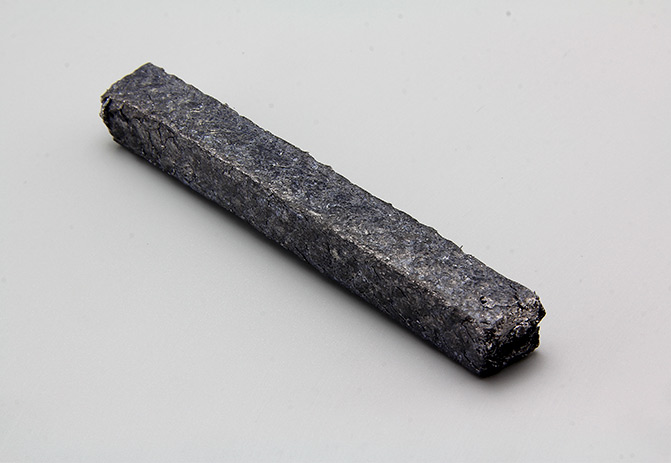

Detail Image

Product Details

Regular:3m, 8m, 1kg, 1 pound, 2.5kg, 2.5 pound, 5kg, 5 pound,10kg, 10 pound.

Other packages are available on request

Normal Dimension:

Size：3、4、5、6、1/4"、8、3/8"、10、7/16"、12、1/2"、14、16、18、19、20、22、25、30、35、40、45、50

More Styles

Application Data

Advantages

Video

Comparison Vision


Pressure: bar	30	N/A	250
Speed: m/s	2	N/A	2
PH Range	2-12
Temp.℃	-240 to +260
Density: (g/cm³)	1.3
Size	1/8"-2"
Size	3mm-50mm

1.STYLE 5200 can be used in Rotary and centrifu g al applications where a high-quality performance product is needed in Pulp and P~pti/n .

2.STYLE 5200 is suitable for Steam. water. oil. solvents alkalies. acids. and most chemicals.

Simply you can wholesale PTFE Impregnated Graphite Gland Packing direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and PTFE Impregnated Graphite Gland Packing suppliers known by the world since 2000.
