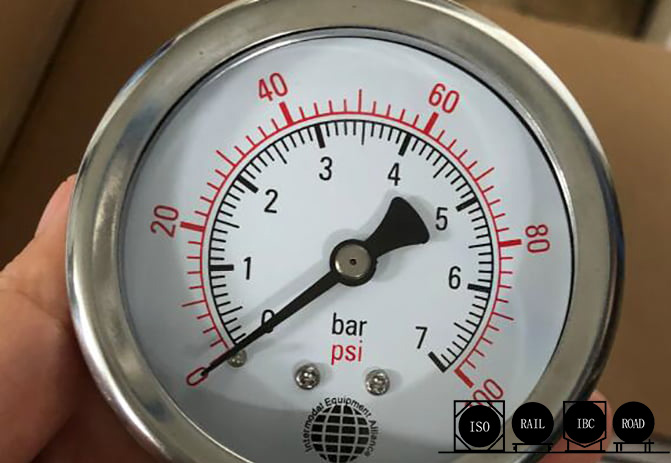

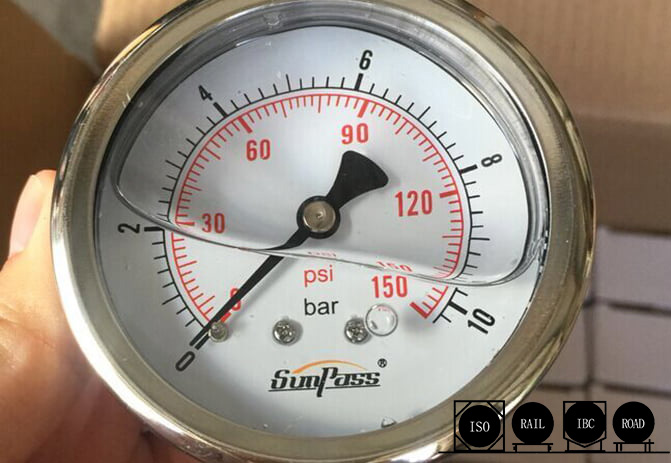

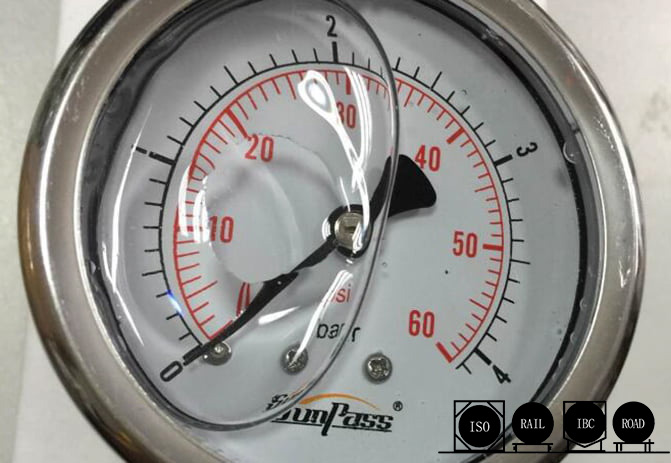

63mm dial pressure gauge (max 70mm), radial without flange. Dual bar & psi scale. Case and wetted part: SS304 / SS316 / SS316L. Filling: glycerin or silicone oil. Thread: 1/4" BSP male / PT / NPT. Accuracy class 1.6 / 2.5, IP65, vibration resistance V.H.3, standard GB/T1226-2010.
|
Indication Range |
0~3,000psi |
|
Case Nominal Diameter |
1-1/2" ; 2", 2- 1/2"; 3"; 4"; 6" |
|
Case Material |
Stainless Steel |
|
Windows |
Polycarbonate |
|
Movement |
Brass, Stainless Steel |
|
Connection |
Bottom Connection or Center Back Male Connection |
|
Inlet Thread |
1/2"; 1/4"; 1/8"; 3/8" BSP, BSPT, NPT or According to customers requirements. |
|
Filled Oil |
Glycerine, Silicone Oil |
|
Scales |
psi, bar, mpa, kg/cm3, Hg single or dual scale or According to customers requirements. |
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and Pressure Gauge suppliers known by the world since 2000.
