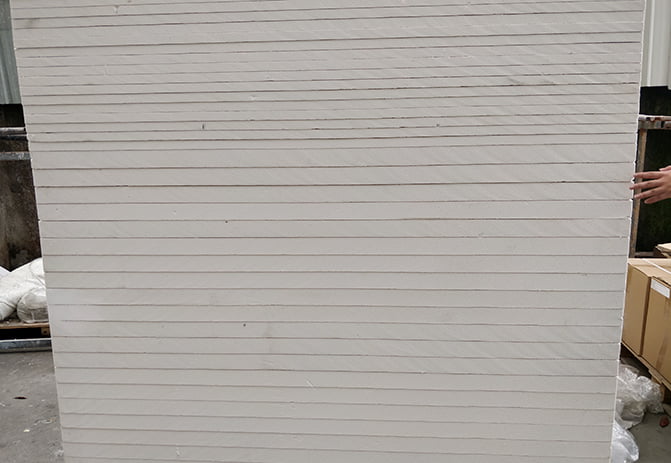

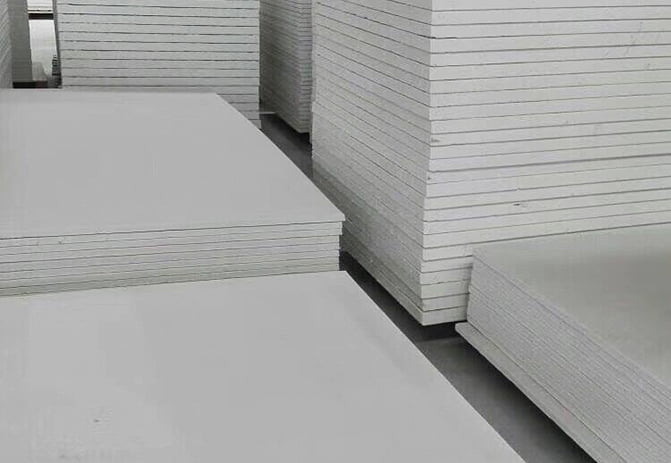

1.TOP SEALING ceramic fiber board is made from refractory fiber pulp with minimum amount of organic bond agent or abio-bond.
2.If smoke is generated when ceramic fiber board is initially heated, it does not affect the ceramic fiber board's high temperature insulation performance.
3.Ceramic fiber board is widely used as industrial insulation or high temperature insulation.
| Description\Grade | COM | STD | HP | HA | HZ | |
| TENGLONG style | 4110COM | 4110STD | 4110HP | 4110HA | 4110HZ | |
| Classification Temperature |
English | 2012℉ | 2300℉ | 2300℉ | 2480℉ | 2606℉ |
| Metric | 1100℃ | 1260℃ | 1260℃ | 1360℃ | 1430℃ | |
| Max Working Temperature | English | 1832℉ | 1832℉ | 1832℉ | 2192℉ | 2462℉ |
| Metric | 1000℃ | 1000℃ | 1100℃ | 1200℃ | 1350℃ | |
| Density | English | 19 lb/ft3 | ||||
| Metric | 300kg/m3 | |||||
| Specification | English | 23.62×15.75×0.79-1.97inch; 35.43×23.62×0.79-1.97inch; 283.47×12.20×0.39-1.97inch |
||||
| Metric | 600×400×20-50mm; 900×600×20-50mm; 7200×610×10-50mm |
|||||
Features
·Resists abrasion
·Resists most acids and alkalis
·Strong and durable
·Not affected by solvents or bleaches
Specification(mm):600*400*20-50;900*600*20-50,other made according to customers' requirement.
| Description\Grade | COM | STD | HP | HA | HZ | |
| TENGLONG Style | 4110COM | 4110STD | 4110HP | 4110HA | 4110HZ | |
| Classification Temperature |
English | 2012℉ | 2300℉ | 2300℉ | 2480℉ | 2606℉ |
| Metric | 1100℃ | 1260℃ | 1260℃ | 1360℃ | 1430℃ | |
| Rate of Liner | -4% | -3% | -3% | -3% | -3% | |
| 1000℃ | 1000℃ | 1000℃ | 1200℃ | 1350℃ | ||
| Tensile Strength | MPa (128kg/m3) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Water Content | ≤1% | ≤1% | ≤1% | ≤1% | ≤1% | |
| Loss of Ignition | ≤7% | ≤7% | ≤7% | ≤7% | ≤7% | |
| Chemical Composition |
Al2O3 | 44% | 46% | 47-49% | 52-55% | 39-40% |
| Al2O3+SiO2 | 96% | 97% | 99% | 99% | - | |
| Al2O3+SiO2+ ZrO2 |
- | - | - | - | 99% | |
| Zr02 | - | - | - | - | 15-17% | |
| Fe2O3 | <1.2% | <1.0% | 0.20% | 0.20% | 0.20% | |
| Na2O+K2O | <=0.5% | <=0.5% | 0.20% | 0.20% | 0.20% | |
-Hot air duct lining
-Shuttle kiln with high gas velocity
-Laboratory furnace
-Kiln car insulation
-Die-cut high temperature seal
Simply you can wholesale CERAMIC FIBER BOARD direct from manufacturers.
-Low heat storage
-Low thermal conductivity
-Excellent abrasive resistance
-Excellent thermal shock resistance
-Excellent chemical stability
-Even density and thickness
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and CERAMIC FIBER BOARD suppliers known by the world since 2000.
