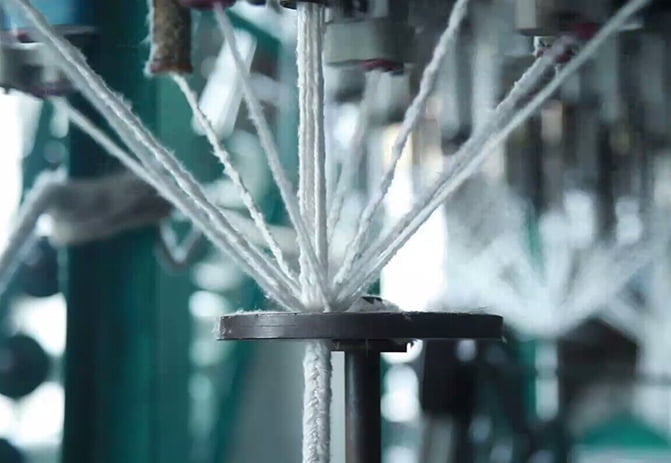

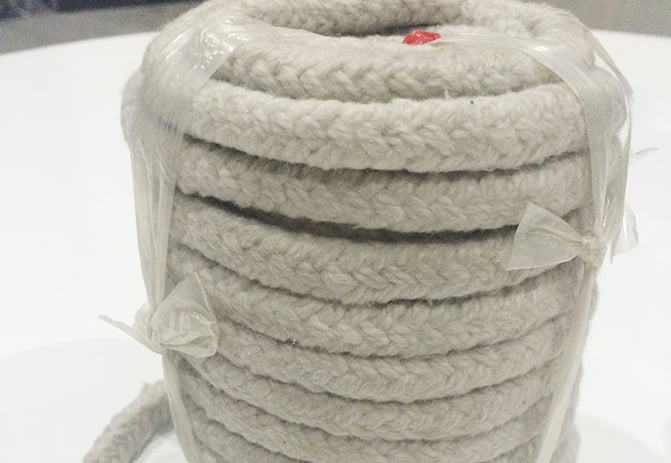

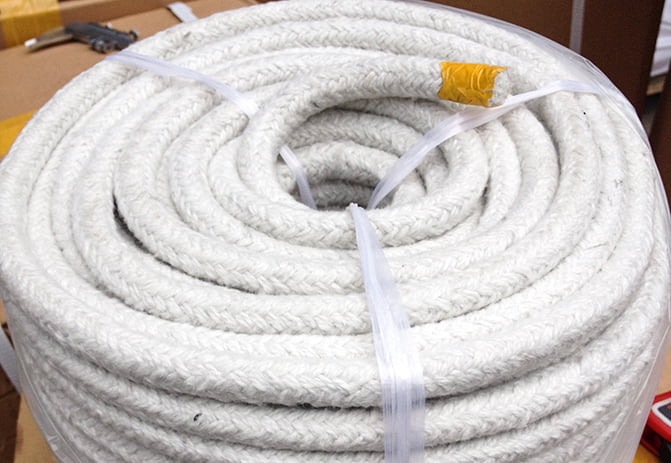

TOP SEALING CERAMIC FIBER ROPE is manufactured from superior quality ceramic fiber yarn, braided cover on cover to form a solid packing. This product is suitable for caulking and general thermal insulation application, with properties of low thermal conductivity. These products have been widely used in welding, foundry works, aluminum and steel mills, boiler insulation and seal, exhaust systems, shipyards, refineries, power plants and chemical plants.
| Description\Item | Ceramic Fiber Rope With Fiber Glass Reinforced | Ceramic Fiber Rope With Metal Reinforced | |||
| TENGLONG style | 4100R-FG,4100S-FG,4000T | 4100R-INC,4100S-INC,4000T-INC | |||
| Reinforced Material | Glass Filament | Stainless Steel | |||
| Classification Temperature |
English | 2300℉ | 2300℉ | ||
| Metric | 1260℃ | 1260℃ | |||
| Maximum Operating Temperature | English | 1562℉ | 1922℉ | ||
| Metric | 850℃ | 1050℃ | |||
| Alkali Content | Good | Good | |||
| Electrical Insulation Property | Better | Good | |||
| Strength | Good | Better | |||
| Description\Item | Ceramic Fiber Round Rope | Ceramic Fiber Square Rope | Ceramic Fiber Twisted Rope | ||||
| TENGLONG Style | 4100R-FG | 4100R-INC | 4100S-FG | 4100S-INC | 4000T | 4000T-INC | |

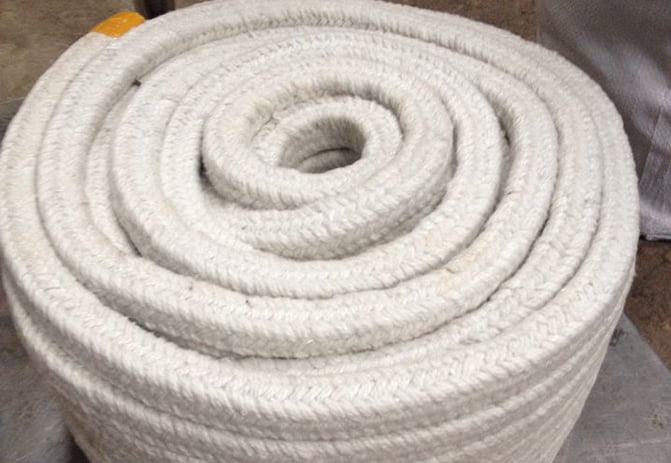

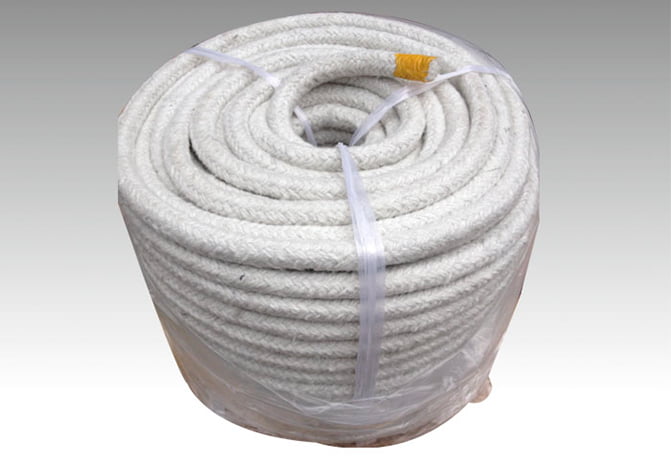

| Construction | Round Braid | Square Braid | Twisted 3-ply | ||||
| Density | English | 50lb/ft3 | 75lb/ft3 | 25lb/ft3 | |||
| Metric | 800 kg/m3 | 1200 kg/m3 | 400 kg/m3 | ||||
| Dimensions | English | Ø 1/4” - 4” | Ø1/4” - 2” | Ø 1/4” - 2” | |||
| Metric | 6mm-100mm | 6mm-60mm | 6mm-60mm | ||||
| Colour | White | ||||||
| Chemical Composition | Al2O3 + SiO2 | 97% | |||||
| Al2O3 | 47% | ||||||
| Fe2O3 | 1% | ||||||
| Fiber Diameter | 2-4 microns | ||||||
| Fiber Length | 100-250 mm | ||||||
| Shrinkage | <3.5% 982℃ (1800 ºF ) | ||||||
| pH Range | 2-12 | ||||||

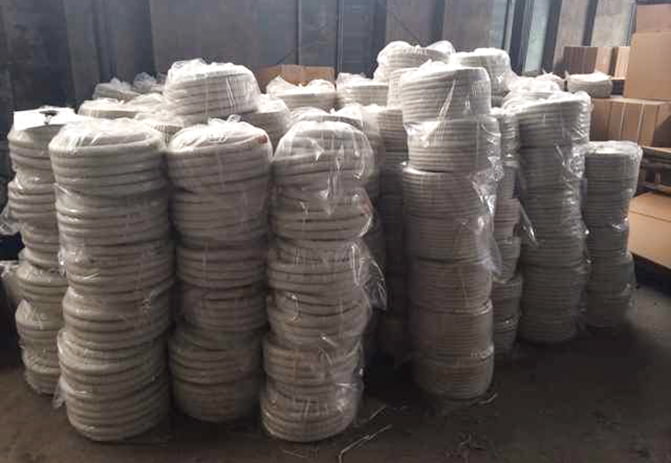

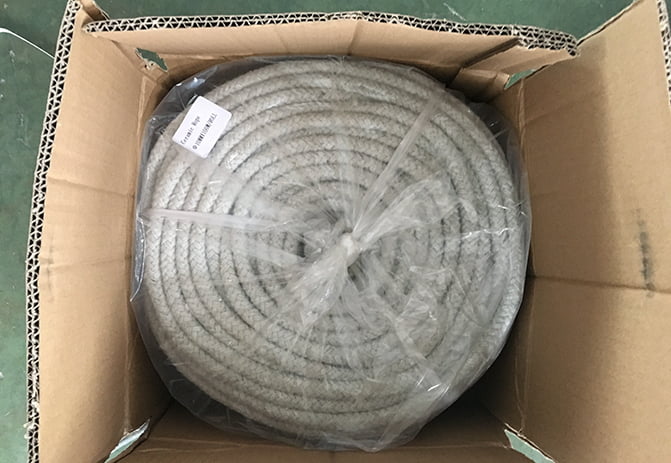

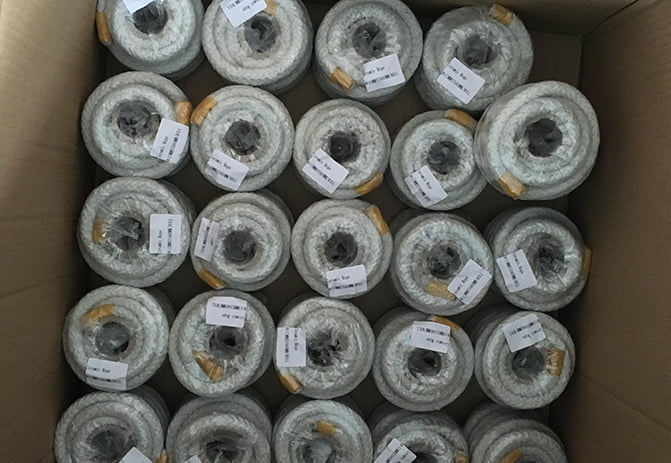

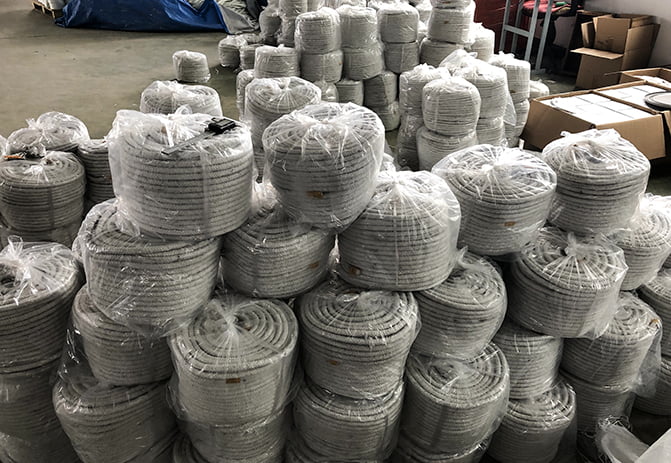

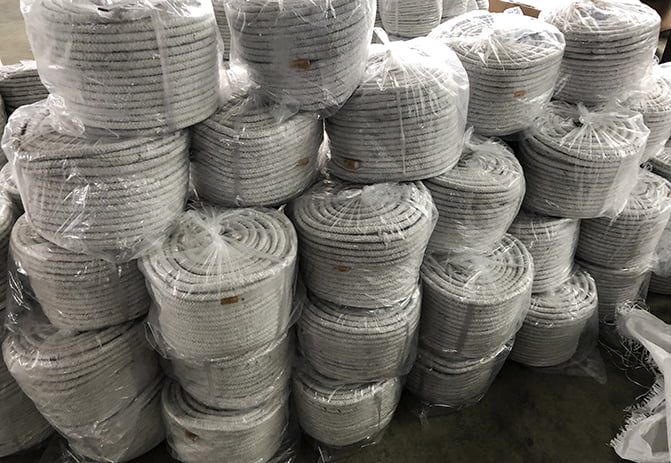

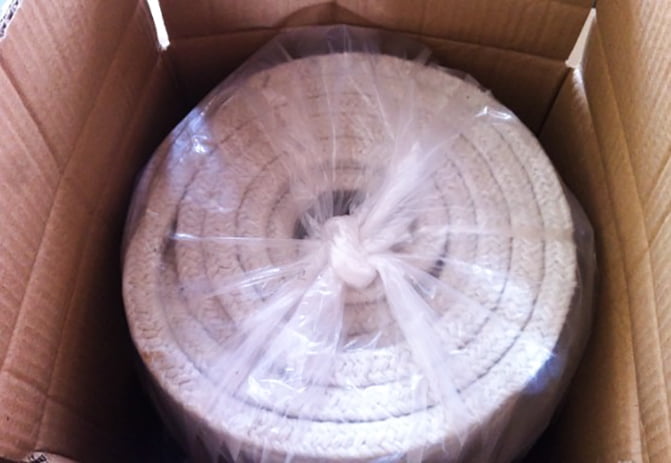

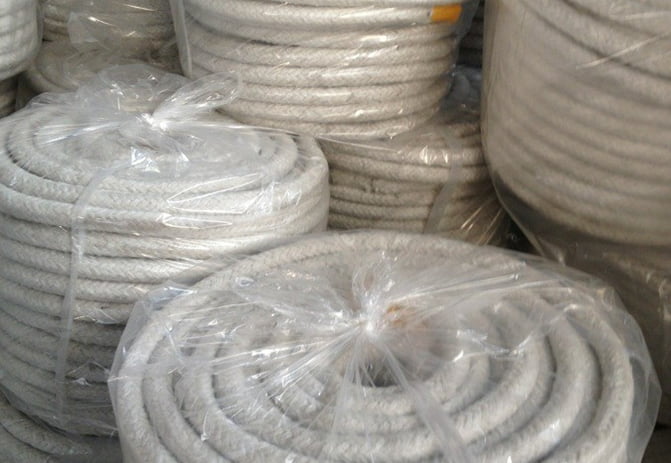

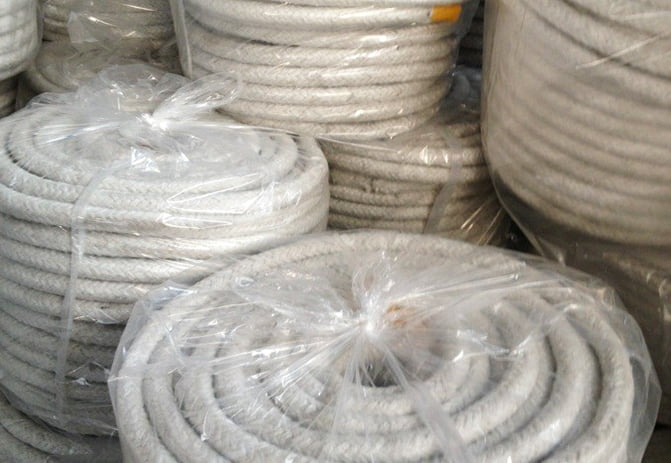

| Package | 25M, 30M, 5KG per roll or as customers requested, 20kg/CTN or 50kgs/plastic woven bag | ||||||
Thermal insulation and sealing for stove, burner, chimney door sealing --Seal for heat exchanger, kiln car
Simply you can wholesale CERAMIC FIBER ROPE direct from manufacturers.
Features
·Low thermal conductivity
·"High temperature stability"
·Good chemical stability
·Lightweight, woven texture with excellent handling strength

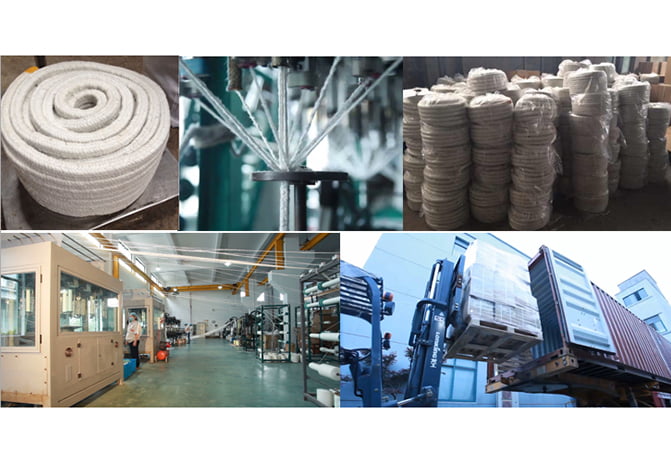

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and CERAMIC FIBER ROPE suppliers known by the world since 2000.
