HIGH SILICA FABRIC

Description:

TOP SEALING HIGH SILICA FABRIC Made with continuous filament, 96% amorphous silica fibers, TOP SEALING HIGH SILICA FABRIC are widely used for applications that require high heat resistance, as well as abrasion and/or chemical resistance. Available in a variety of weights ranging from 18 oz/sy to 70 oz/sy, TOP SEALING HIGH SILICA FABRIC are widely used for the safety of personnel and equipment, and as thermal barriers to reduce energy costs.

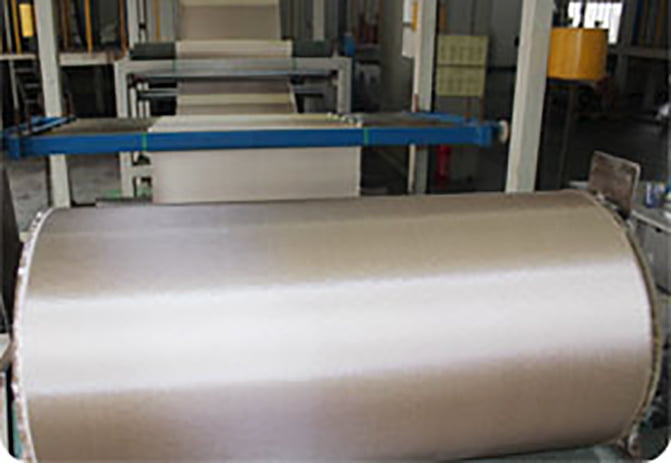

Detail Image

Product Details

Property	Description	Style No.
Property	Description	Silica 84	Silica 86	Silica 88
Weave Type	-	Stain	Stain	Stain
Selvage	-	Woven	Woven	Woven
Warp Counts	Ends/Inch	≥50	≥18	≥18
Weft Counts	Ends/Inch	≥35	≥13	≥13
Warp tensile strength	-	≥ 150 Lb/Inch	≥ 800 Nb/Inch	≥ 800 Nb/Inch
Weft tensile strength	-	≥ 100 Lb/Inch	≥ 600 Nb/Inch	≥ 600 Nb/Inch
Chemical Composition	SiO2	≧96%
Chemical Composition	Al2O3	3.5%±0.5

More Styles

Application Data

Advantages

Video

Comparison Vision

Description\Style No.		Silica 84	Silica 86	Silica 88
Weight	English	18oz/y2	30oz/y2	33oz/y2
Weight	Metric	600g/m2	1100g/m2	1200g/m2
Thickness	English	0.027inch	0.047inch	0.05inch
Thickness	Metric	0.76mm	1.20mm	1.35mm
Width	English	36inch	36inch	36inch
Width	Metric	915mm	915mm	915mm
Temperature	English	1000℃	1000℃	1000℃
Temperature	Metric	1832℉	1832℉	1832℉
Coating		Silicon, Vermiculite, PU

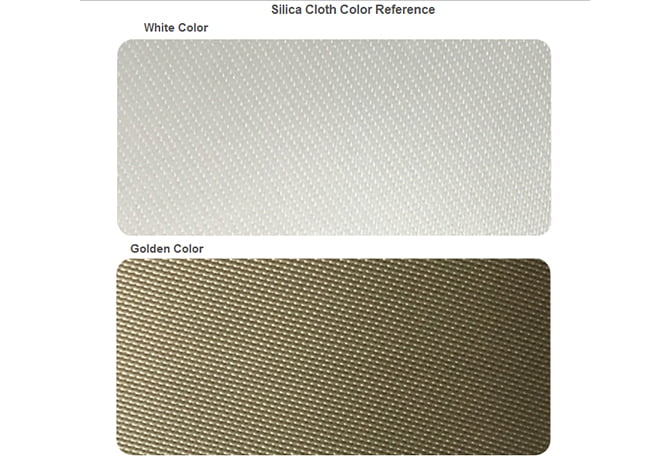

Color		Red, Yellow, White

Simply you can wholesale HIGH SILICA FABRIC direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and HIGH SILICA FABRIC suppliers known by the world since 2000.
