23 PCS Gland Packing Instal & Extractor

Description:

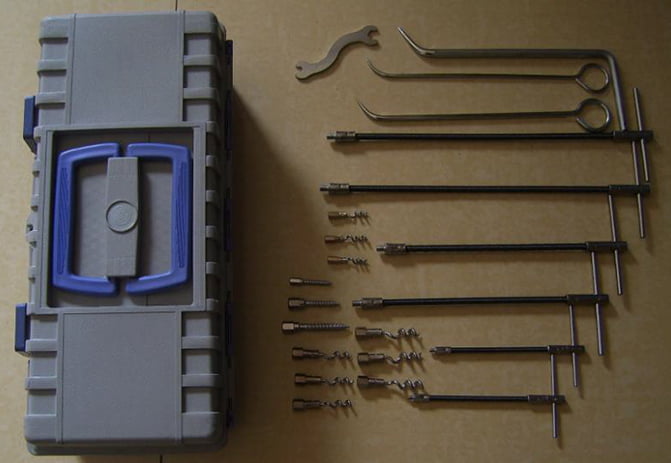

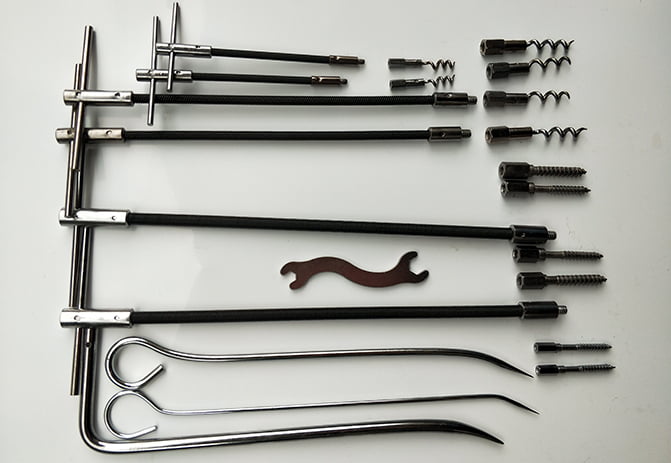

TOP SEALING 23 PCS Gland Packing Instal & Extractor SP-80030 is in the form of a portable toolbox with 23 standard sets. The main configuration: flexible handleable handle, rigid hook, thread drill, curved crochet.

23 PCS Gland Packing Instal & Extractor

Detail Image

Product Details

Instructions:
Before using the combination packing tool, a different length of the tie rod and the corresponding size crochet wrench should be selected according to the size of the packing to assemble a packing lifting tool, and then the cone is screwed into the two points of the packing pair. Rotate for a few weeks, as follows:
1. Pull the packing: The handle is pulled out with one hand and one handle. (Note that both hands are evenly applied)
2. add packing: Before installing the packing, it is necessary to select the matching packing according to the specific working conditions. After each turn, the packing is slowly pressed along the circumference or the bearing packing and installed in the correct position.

More Styles

Application Data
Advantages
Video
Comparison Vision

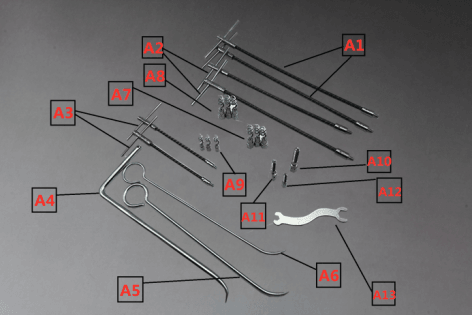

Num Name Specification Performance Bottom Quantity/PCS
A1 Flexible handling handle 320MM Flexible tie rod Flexible handling 2
A2 Flexible handling handle 260MM Flexible tie rod Flexible handling 2
A3 Flexible handling handle 145MM Flexible tie rod Flexible handling 2
A4 Rigid hook Φ8MM Rigidity Cutting edge 1
A5 Rigid hook Φ5MM Rigidity Cutting edge 1
A6 Rigid hook Φ4MM Rigidity Cutting edge 1
A7 Curved crochet Φ10MM Curved Flexible handling 3
A8 Curved crochet Φ8MM Curved Flexible handling 3
A9 Curved crochet Φ6MM Curved Flexible handling 3
A10 Thread drill Φ10MM Straight Flexible handling 1
A11 Thread drill Φ8MM Straight Flexible handling 1
A12 Thread drill Φ6MM Straight Flexible handling 1
A13 Wrench M6/8 Practical Flexible 1
A14 Tool Box 13" Durable Durable 1



Simply you can wholesale 23 PCS Gland Packing Instal & Extractor direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and 23 PCS Gland Packing Instal & Extractor suppliers known by the world since 2000.
