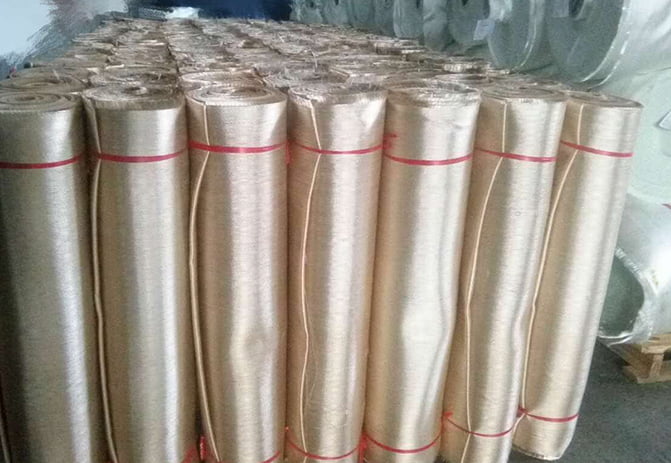

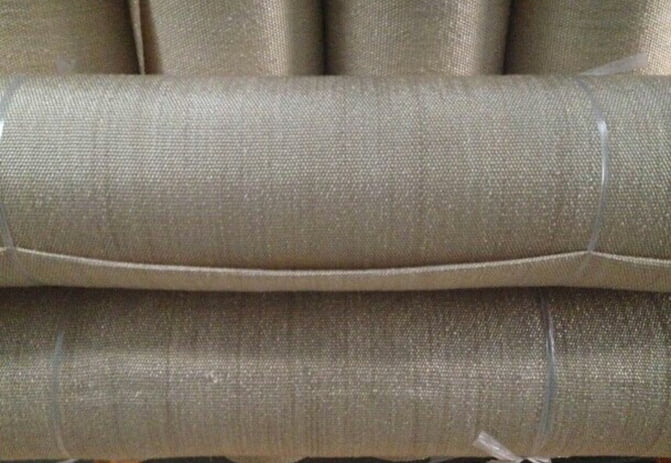

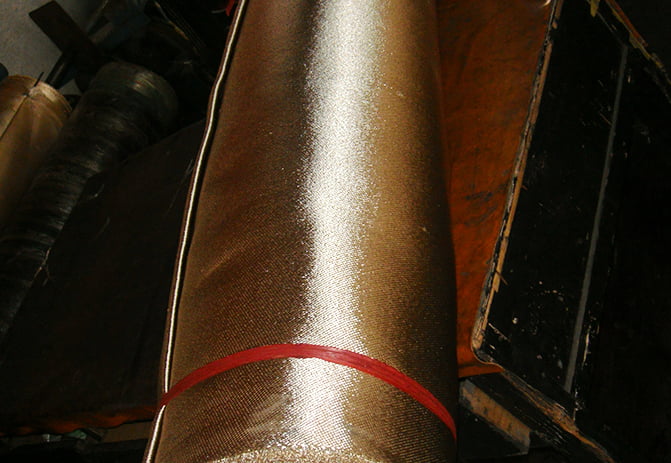

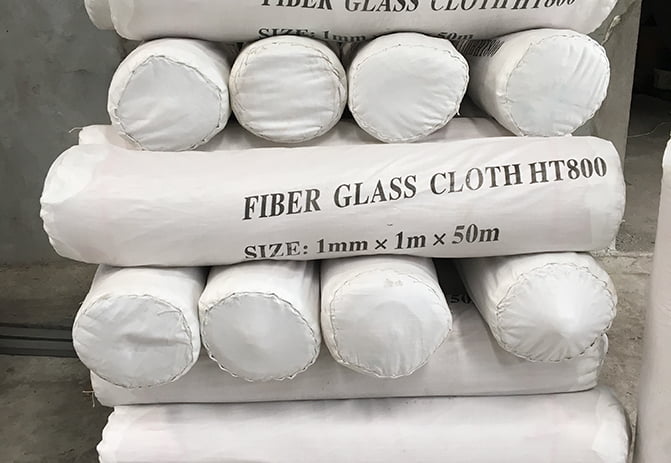

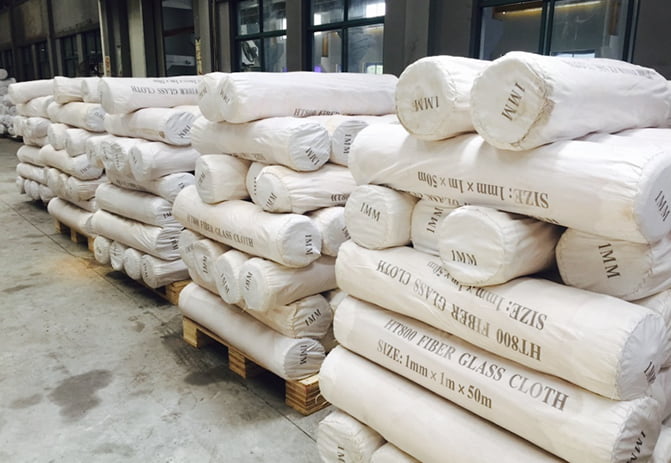

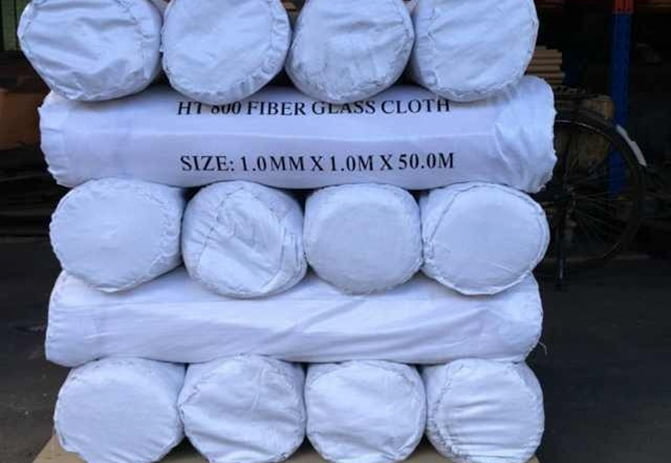

TOP SEALING HT800 HEAT TREATED FIBERGLASS FABRIC pass through a oven with high temperature in order to burn off the sizing and other organic elements in the cloth.
Heat treated fiberglass fabrics can withstand continuous temperatures up to 1200°F (650ºC) while maintaining good strength and flexibility.
Features
· "Non-flammable"
· High product value
· "Remains flexible at high temperatures"
· "Maintains high tensile strength at elevated temperatures. "
| Property | Description | Value | |
| English | Metric | ||
| Weave Style | Satin | - | - |
| Thickness | - | 0.03inch | 0.8mm |
| Weight | - | 26oz/yd2 | 880g/m2 |
| Widths | - | 40-60inch | 1-1.5m |
| Warp, Ends | - | 46inch | 1m |
| Fill, Ends | - | 35inch | 0.9m |
| Tensile Strength, Initial | Warp | 630ibs/in | 112.6kg/cm |
| Fill | 490ibs/in | 87.4kg/cm | |
| After 3 Hours at 1300ºF (700ºC) | Warp | 360ibs/in | 64.2kg/cm |
| Fill | 240ibs/in | 42.9kg/cm | |
| Temperature Resistance | Maximum Continuously | 1022℉ | 550 °C |
| Thermal Conductivity | - | 0.09w/m-k | |
| Elongation | - | 80% | |
Simply you can wholesale HEAT TREATED FIBERGLASS FABRIC direct from manufacturers.
SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and HEAT TREATED FIBERGLASS FABRIC suppliers known by the world since 2000.
