SILICONE FIBERGLASS CLOTH

Description:

1.TOP SEALING SILICONE FIBERGLASS CLOTH is a fiberglass base fabric coated with a silicone rubber on both sides or one side.
2.Silicone rubber coated fiberglass cloth excel in high temperature applications. Silicone adds abrasion resistance, water proofing and adds extended life, while providing greater oil and water resistance than uncoated fabrics.

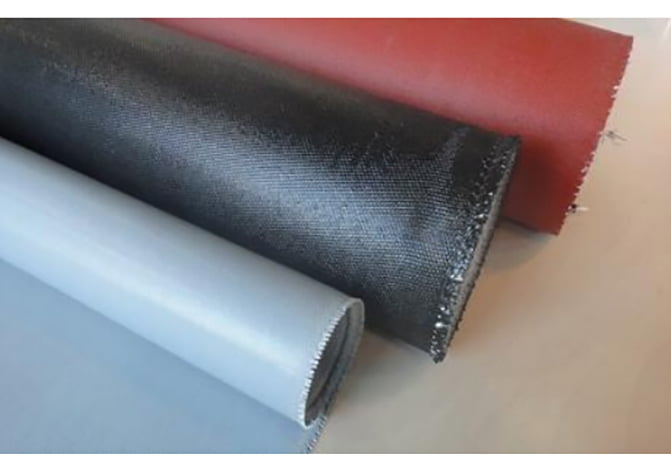

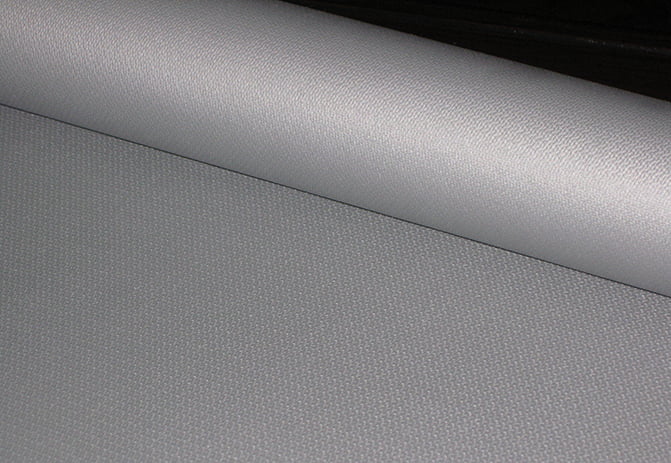

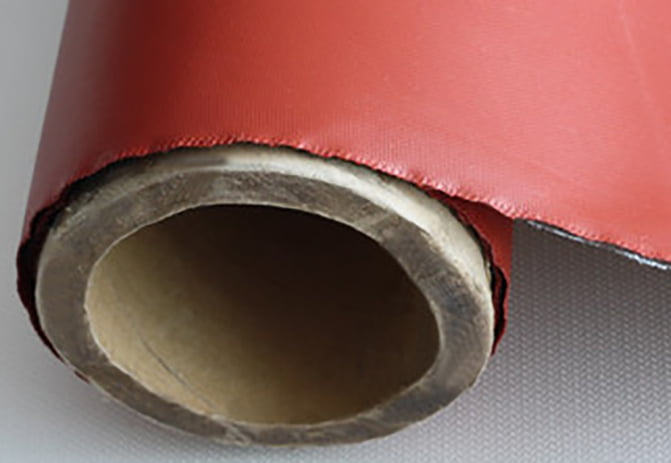

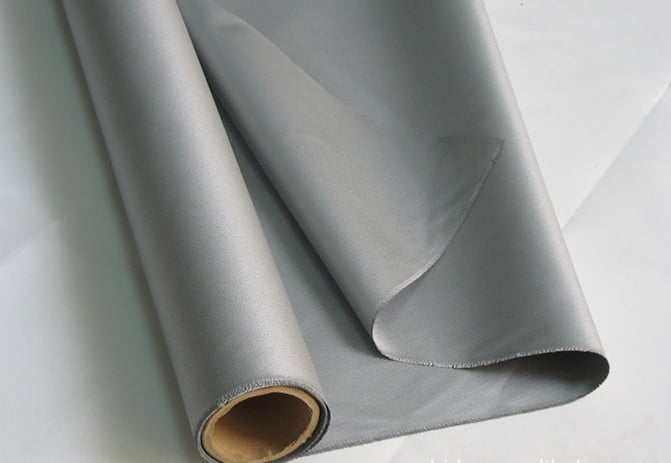

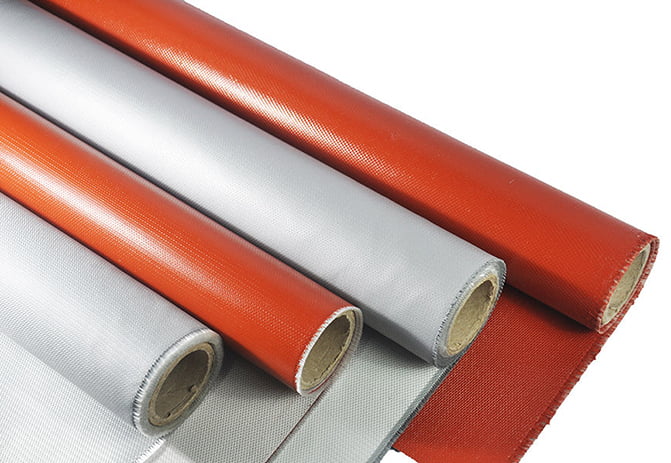

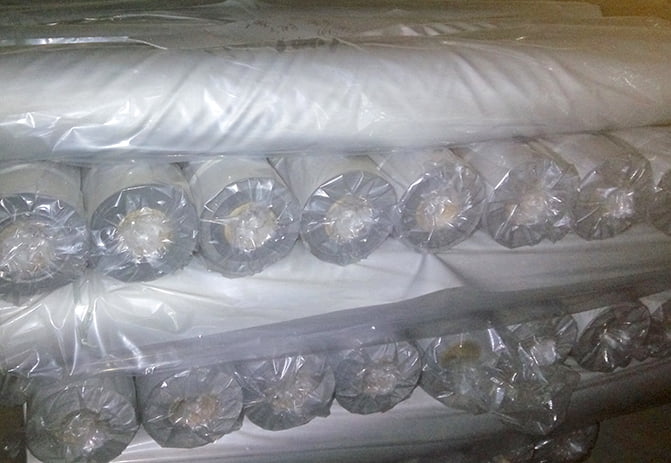

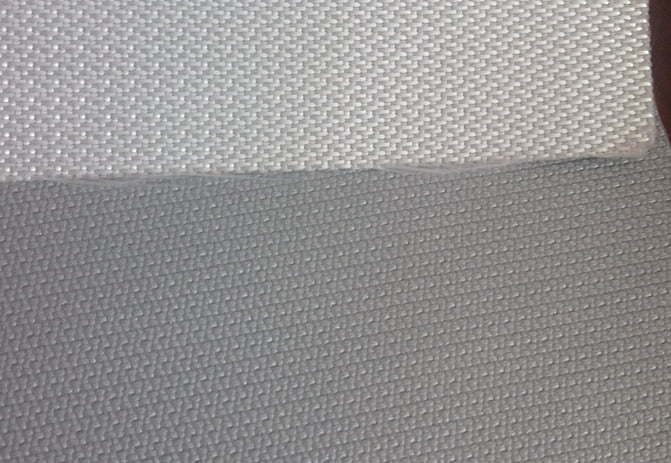

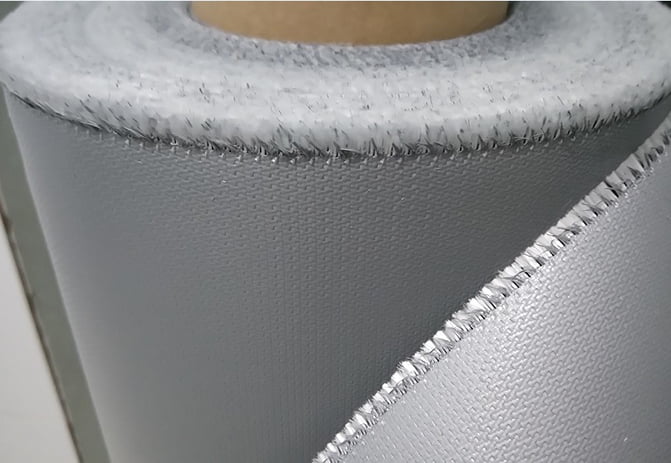

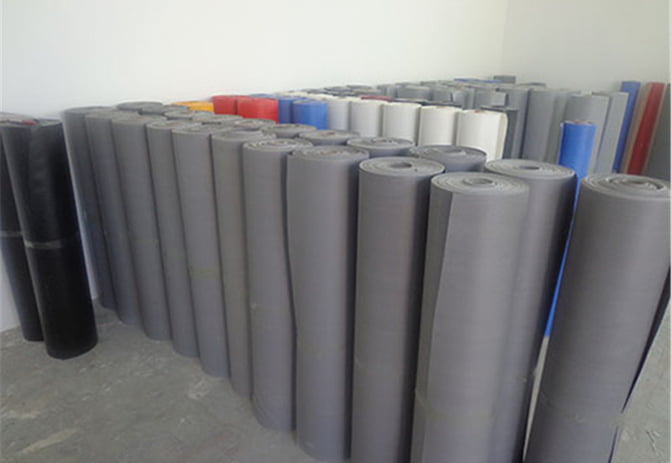

Detail Image

Product Details

Description\Style No.		3800-08 Silicone	3800-10 Silicone	3800-15 Silicone	3800-20 Silicone	3800-30 Silicone
Base Cloth Weight	English	18 oz/y²	24 oz/y²	30 oz/y²	36 oz/y²	52 oz/y²
Base Cloth Weight	Metric	650 g/m²	800 g/m²	1000 g/m²	1250 g/m²	1800 g/m²
Thickness	English	0.03 inch	0.04 inch	0.06 inch	0.07 inch	0.1 inch
Thickness	Metric	0.8 mm	1 mm	1.5 mm	2 mm	3 mm
Width	English	40-70 inch	40-78 inch	40-78 inch	40-78 inch	40-78 inch
Width	Metric	1-1.8 m	1-2 m	1-2 m	1-2 m	1-2 m
Temperature	Base Fabric	535℃ (1000℉)
Temperature	Coating	260℃ (500℉)
Weave		Plain
Insulation	dielectric constant	3-3.2
Insulation	breakdown voltage	20 - 50 KV/mm
Color		Red, Grey

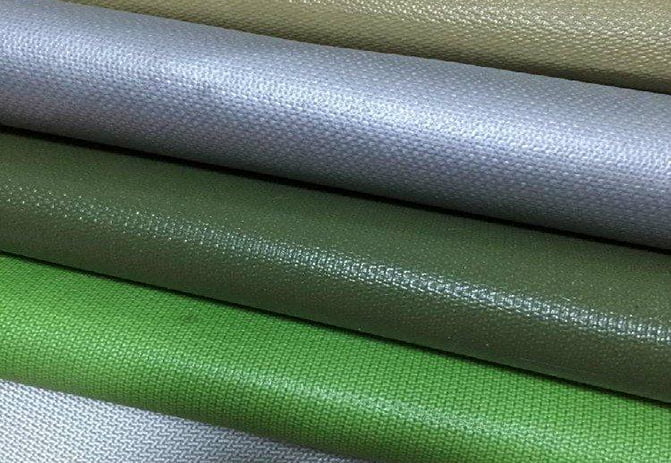

More Styles

Application Data

Advantages

Video

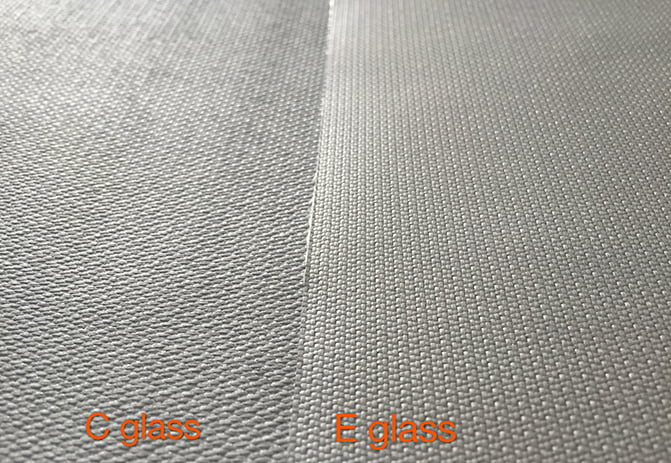

Comparison Vision

Property	Description	Value and Tolerance
Property	Description	English	Metric
Tensile Strength	Warp	200-400ibs/in min. avg.	35-70n/mm min. avg.
Tensile Strength	Fill	100-200ibs/in min. avg.	17.5-35n/mm min. avg.
Tear Strength	Warp	50ibs min. avg	8.75n/mm min. avg.
Tear Strength	Fill	25ilbs min. avg	4.375n/mm min. avg.
Burst Strength	-	200ibs/in2 min. avg	14.0618kg/cm2 min. avg
Hydrostatic Resistance	-	200ibs/in2 min. avg	14.0618kg/cm2 min. avg

Simply you can wholesale SILICONE FIBERGLASS CLOTH direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and SILICONE FIBERGLASS CLOTH suppliers known by the world since 2000.
