VERMICULITED FIBERGLASS CLOTH

Description:

TOP SEALING VERMICULITED FIBERGLASS CLOTH is woven from continuous texturized E-fiberglass yarns, has good chemical and fire resistant. Vermiculite coating improve abrasion resistance, which acts as armor to the fiberglass, providing better resistance to direct flame. Heat travels across the fabric-not through it.

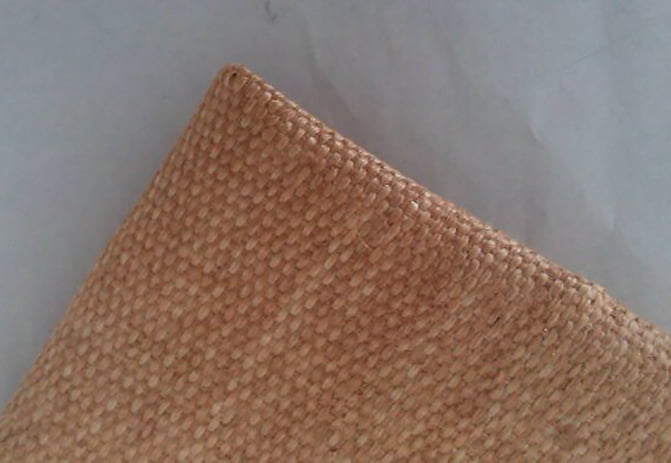

Detail Image

Product Details

Property	Description	Value
Chemical Composite	SiO2	38-46
	AL2O3	10-16
	MgO	16-35
	CaO	1-5
	K2O	1-6
	Fe2O3	6-13
	H2O	8-16
Color	Gold-Brown
Free Moisture	Maximum	0.50%
pH	-	7.0-9.5
Specific Gravity	2.5	-
Fusion Point	English	2200-2400℉
Fusion Point	Mteric	1200-1315℃

More Styles

Application Data

Advantages

Video

Comparison Vision

Property	Description	Value
Property	Description	English	Metric
Weave	Plain	-	-
Color	Tan	-	-
Weight	-	18-52oz/y2	650-1800g/m2
Thickness	-	0.03-0.1inch	0.8-3mm
Construction	Warp	18-20
Construction	Fill	8-15
Tensile Strength (Average)	Warp	200-300ibs/in	344-516N/cm
Tensile Strength (Average)	Fill	150-400ibs/in	258-688N/cm
Temperature	Continuous	1000℉	550℃
Temperature	Short Exposure	1400℉	760℃

Other size can be manufactured as request.

Vermiculite coated Fiberglass cloth fabric is used for heat shield, flange and valve covers, welding curtains, expansion joins and equipment

Simply you can wholesale VERMICULITED FIBERGLASS CLOTH direct from manufacturers.
