VERMICULITED COATED FIBERGLASS TAPE

Description:

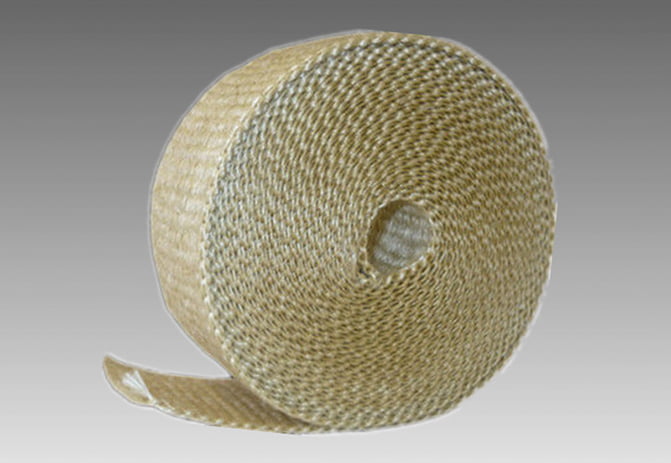

TOP SEALING VERMICULITED COATED FIBERGLASS TAPE are carefully woven and sized using fiberglass yarns. The applications for this product include thermal insulation and protection of wires, cables, hoses, pipe and tube, as well as affording energy savings and personnel protection.

Detail Image

Product Details

Description\ Item		E-Glass	C-Glass
Chemical Composition	SiO2	58-63%	64-68%
	CaO	21-23%	11-15%
	Al2O3	10-13%	3-5%
	MgO	2-4%	4-6%
	B2O3	-	0-6%
Chemical Resistance-14mm fiber; % weight loss after 1 hr boil in	H2O	0.2	0.13
	1.04 NH2SO4	0	0.1
	0.1 NaOH	0.2-0.6	2.28
Temperature	Softening Point	892℃/1635℉	748℃/1380℉
	Coefficient of Thermal Expansion-in/in/ °F x 10-7	2℃/29℉	5℃/40℉
	Specific Gravity (bare fiber)	2.63	2.49
Pristine Tensile Strength, psi		510,000	400,000

More Styles

Application Data

Advantages

Video

Comparison Vision

Description\ Item		Vermiculite Coated Fiberglass Tape
		English	Metric
Coating		Vermiculite
Coating Thickness		0.28mil/0.7mil/ 0.98mil	7um/18um/ 25um
Temperature Resistance	Continuous Operation	1500°F	815°C
	Short Duration Exposure	1598°F	870°C
	Melting Point	2057°F	1125°C
Thickness		0.03-0.24inch	0.8mm to 6mm
Width		0.40-8inch	10mm to 200mm
Color		Tan

Simply you can wholesale VERMICULITED COATED FIBERGLASS TAPE direct from manufacturers.

Professional Manufacturer

SUNPASS SEALING i a leading manufacturer in Sealing and Insulation in China. Production & Service 7*24 . Sunpass is a famous Chinese brand and VERMICULITED COATED FIBERGLASS TAPE suppliers known by the world since 2000.
